50Ω 41GHz Coaxial Cable

The GLRG142 Coaxial Cable (50±2Ω) features full silver-plated copper conductors/braid, PTFE insulation, supports 41GHz, VSWR <1.15, -55~+200℃, and 2.1KW peak power for extreme-environment RF transmission.

Model:
GLRG142
Brand:
GLOBAL
Code:
8517710000
Capacity:
1000PC/Day
MOQ:
100PC
OEM&ODM:
Accepted

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Introduction

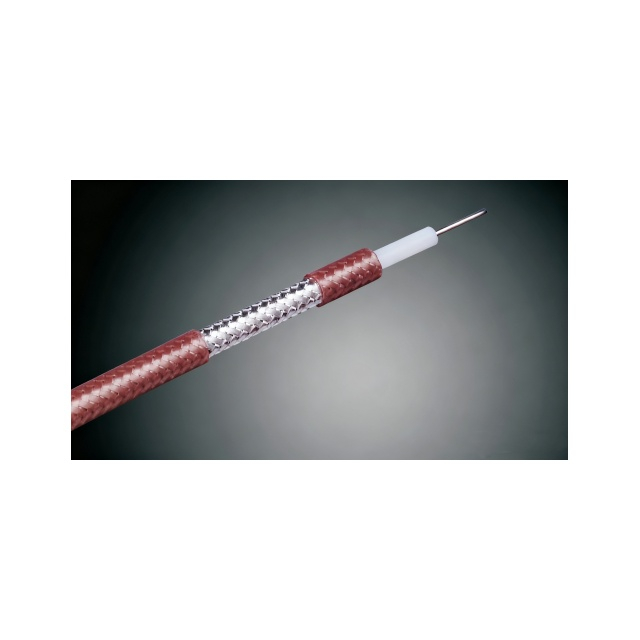

Cable Construction 1.Inner Conductor Silver plated copper wire Φ0.94±0.02mm 2.Insulation PTFE Ф2.95±0.1mm 3.Braid Silver plated copper wire 36AWG Ф4.35±0.1mm 4.Jacket Polyfluoroethylpropene FEP Φ4.95±0.1mm Mechanical Characteristics and Electrical Performance Parameters Impedance 50±2Ω Capacitance 102±2PF/M Velocity 70% Peak Power 2.1KW Inner Conductor Dc resistance ≥23.3ohms/1000m Outer Conductor Dc resistance ≥10.38ohms/1000m Cutoff Frequency 41GHz Operating Temperature (℃) -55~+200℃ VSWR DC~3GHz <1.15

50Ω Copper Coaxial Cable 41GHz High-Frequency RF Cable
