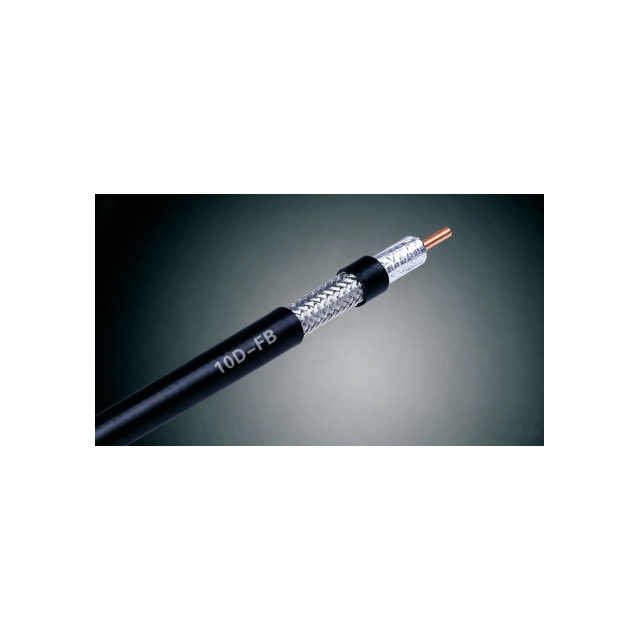

50Ω 2.7KW Max-Core Coaxial Cable

No

Material quality

Dimensions

1.Inner Conductor

Copper clad Aluminum or Bare Copper

Φ3.5±0.02mm

2.Insulation

Foam FPE

Ф10.0±0.1mm

3.Outer Conductor

Dual ai Foil (36*0.06mm)

Ф10.18±0.1mm

4.Braid

Tinned Copper Al-Mg alloy wire

Ф10.8±0.1mm

5.Jacket

PVC or PE

Φ13.0±0.1mm

Mechanical Characteristics and Electrical Performance Parameters

Impedance

50±2Ω

Capacitance

84±2PF/M

Velocity

80%

Peak Power

2.7KW

Inner Conductor Dc resistance

≥2.78ohms/1000m

Outer Conductor Dc resistance

≥7.76ohms/1000m

Cutoff Frequency

15GHz

Operating Temperature (℃)

-40~+85℃

VSWR

DC~3GHz

<1.25

3~6GHz

<1.35
