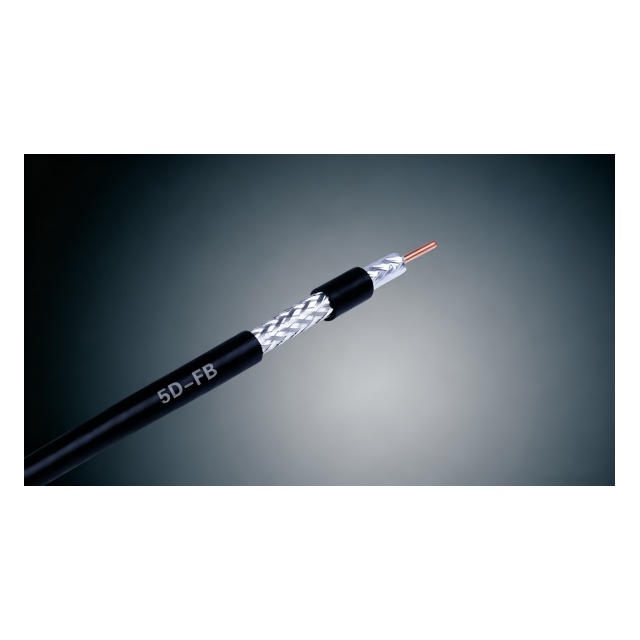

50Ω 2.6KW High-Power Coaxial Cable

No

Material quality

Dimensions

1.Inner Conductor

Copper clad Aluminum or Bare Copper

Φ1.8±0.02mm

2.Insulation

Foam FPE

Ф5.0±0.1mm

3.Outer Conductor

Dual ai Foil(20*0.06mm)

Ф5.2±0.1mm

4.Braid

Tinned Copper Al-Mg alloy wire

Ф5.6±0.1mm

5.Jacket

PVC or PE

Φ7.5±0.1mm

Mechanical Characteristics and Electrical Performance Parameters

Impedance

50±2Ω

Capacitance

84±2PF/M

Velocity

80%

Peak Power

2.6KW

Inner Conductor Dc resistance

≥10.53ohms/1000m

Outer Conductor Dc resistance

≥16.76ohms/1000m

Cutoff Frequency

21GHz

Operating Temperature (℃)

-40~+85℃

VSWR

DC~3GHz

<1.2

3~6GHz

<1.3
