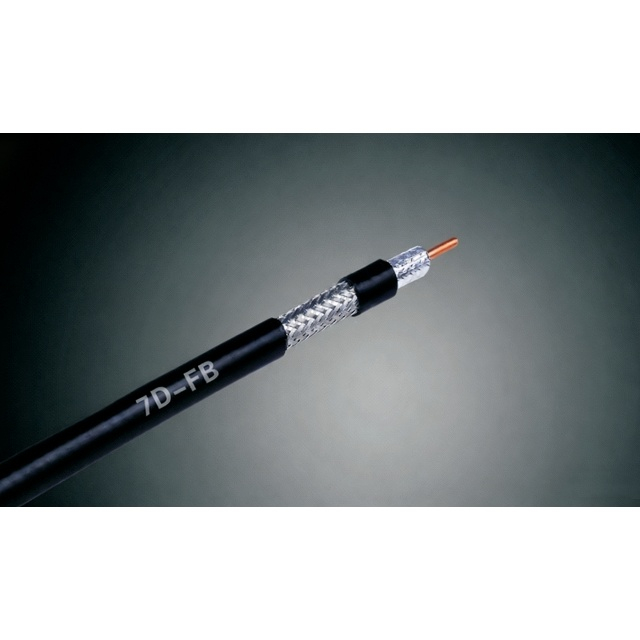

50Ω 2.6KW Heavy-Duty Coaxial Cable

No

Material quality

Dimensions

1.Inner Conductor

Copper clad Aluminum or Bare Copper

Φ2.6±0.02mm

2.Insulation

Foam FPE

Ф7.3±0.1mm

3.Outer Conductor

Dual ai Foil (28*0.06mm)

Ф7.48±0.1mm

4.Braid

Tinned Copper Al-Mg alloy wire

Ф8.04±0.1mm

5.Jacket

PVC or PE

Φ10.1±0.1mm

Mechanical Characteristics and Electrical Performance Parameters

Impedance

50±2Ω

Capacitance

77.8±2PF/M

Velocity

82%

Peak Power

2.6KW

Inner Conductor Dc resistance

≥5.06ohms/1000m

Outer Conductor Dc resistance

≥9.76ohms/1000m

Cutoff Frequency

15GHz

Operating Temperature (℃)

-40~+85℃

VSWR

DC~3GHz

<1.2

3~6GHz

<1.3
