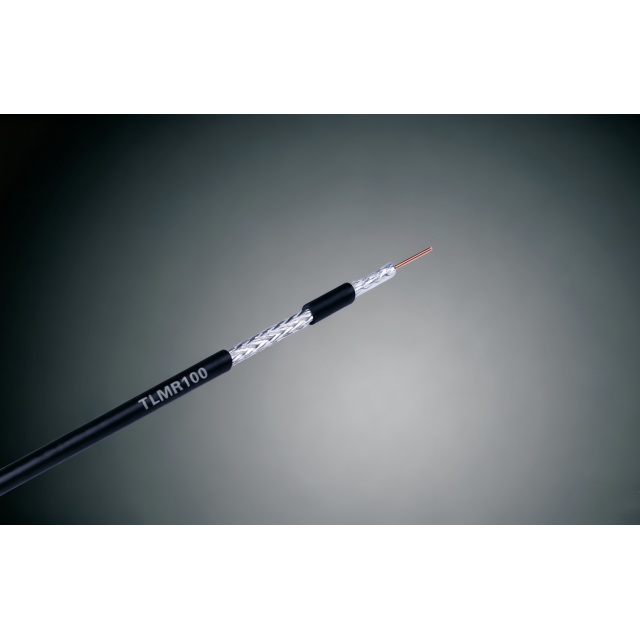

GLTLMR100
GLOBAL
8517710000
100PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Cable Construction | ||||
No | Material quality | Dimensions | ||
1.Inner Conductor | Bare Copper | Φ0.46±0.02mm | ||
2.Insulation | Solid core PE | Ф1.52±0.1mm | ||
3.Outer Conductor | single-sided aluminum tape | Ф1.85±0.1mm | ||
4.Braid | Tinned Copper | Ф1.95±0.1mm | ||
5.Jacket | Black PVC | Φ2.8±0.1mm | ||
Mechanical Characteristics and Electrical Performance Parameters | ||||
Impedance | 50±2Ω | |||
Capacitance | 96±2PF/M | |||
Velocity | 66% | |||
Peak Power | 2.5KW | |||
Inner Conductor Dc resistance | ≥95.31ohms/1000m | |||
Outer Conductor Dc resistance | ≥20.7ohms/1000m | |||
Cutoff Frequency | 15GHz | |||
Operating Temperature (℃) | -40~+85℃ | |||
VSWR | DC~6GHz | <1.3 | ||
Cable Construction | ||||
No | Material quality | Dimensions | ||
1.Inner Conductor | Bare Copper | Φ0.46±0.02mm | ||
2.Insulation | Solid core PE | Ф1.52±0.1mm | ||
3.Outer Conductor | single-sided aluminum tape | Ф1.85±0.1mm | ||
4.Braid | Tinned Copper | Ф1.95±0.1mm | ||
5.Jacket | Black PVC | Φ2.8±0.1mm | ||
Mechanical Characteristics and Electrical Performance Parameters | ||||
Impedance | 50±2Ω | |||
Capacitance | 96±2PF/M | |||
Velocity | 66% | |||
Peak Power | 2.5KW | |||
Inner Conductor Dc resistance | ≥95.31ohms/1000m | |||
Outer Conductor Dc resistance | ≥20.7ohms/1000m | |||
Cutoff Frequency | 15GHz | |||
Operating Temperature (℃) | -40~+85℃ | |||
VSWR | DC~6GHz | <1.3 | ||
