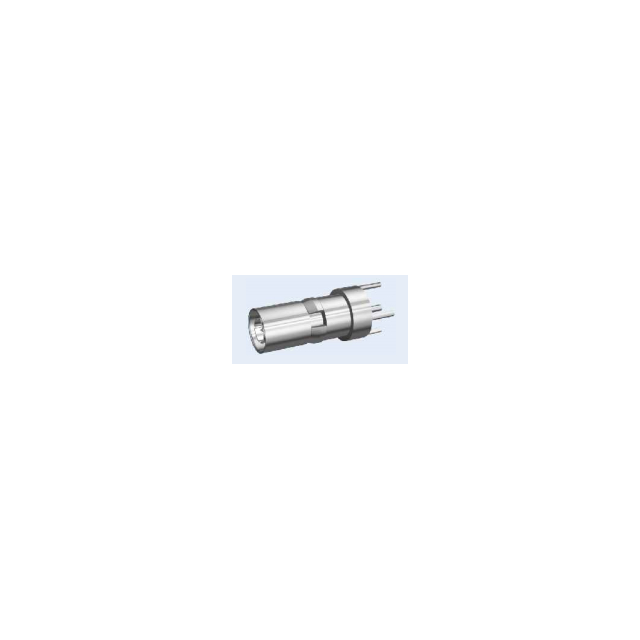

5.08mm diameter Straight PCB Plugs PCB connectors

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Frequency Range(GHz)	0-2
Characteristic impedance(ohm)	50
VSWR	≤1.30
Insulation resistance	≥1000MΩ
Dielectric Withstanding voltage	750V(rms)
Voltage rating	250V(rms)
Contact resistance	Center conductor	≤10mΩ
	Outer conductor	≤5mΩ
Connector	DKZ
Length(mm)	Ф5.08*17.7
Durability	500 Cycles
MATERIAL AND PLATING
Body	Brass,gold plated
Male center contacts	Brass,gold plated
Female center contacts	Beryllium copper,gold plated
Insulators	PTFE
Crimp ferrules	copper alloy,nickel or gold plated
Spring contacts	Beryllium copper,gold plated
Temperature range	-55~+125℃
