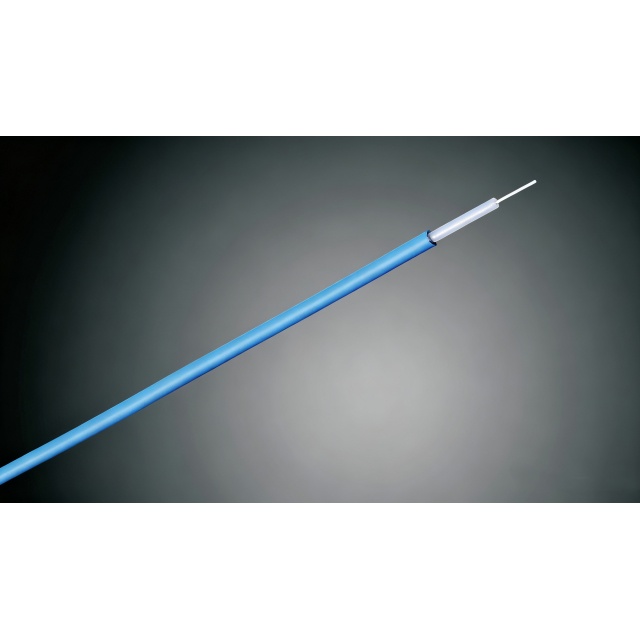

GLRG405
GLOBAL
8517710000
100PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Cable Construction | ||||
No | Material quality | Dimensions | ||
1.Inner Conductor | Silver plated copper/Silver plated copper coated steel | Φ0.52±0.02mm | ||
2.Insulation | PTFE | Ф1.65±0.1mm | ||
3.Braid | Silver plated copper wire | Ф2.15±0.1mm | ||
4.Jacket | FEP | Φ2.5±0.1mm | ||
Mechanical Characteristics and Electrical Performance Parameters | ||||
Impedance | 50±2Ω | |||
Capacitance | 95±2PF/M | |||
Velocity | 70% | |||
Peak Power | 2.1KW | |||
Inner Conductor Dc resistance | ≥118.5ohms/1000m | |||
Outer Conductor Dc resistance | ≥10.38ohms/1000m | |||
Cutoff Frequency | 41GHz | |||
Operating Temperature (℃) | -55~+200℃ | |||
VSWR | DC~6GHz | <1.25 | ||
Cable Construction | ||||
No | Material quality | Dimensions | ||
1.Inner Conductor | Silver plated copper/Silver plated copper coated steel | Φ0.52±0.02mm | ||
2.Insulation | PTFE | Ф1.65±0.1mm | ||
3.Braid | Silver plated copper wire | Ф2.15±0.1mm | ||
4.Jacket | FEP | Φ2.5±0.1mm | ||
Mechanical Characteristics and Electrical Performance Parameters | ||||
Impedance | 50±2Ω | |||
Capacitance | 95±2PF/M | |||
Velocity | 70% | |||
Peak Power | 2.1KW | |||
Inner Conductor Dc resistance | ≥118.5ohms/1000m | |||
Outer Conductor Dc resistance | ≥10.38ohms/1000m | |||
Cutoff Frequency | 41GHz | |||
Operating Temperature (℃) | -55~+200℃ | |||
VSWR | DC~6GHz | <1.25 | ||
