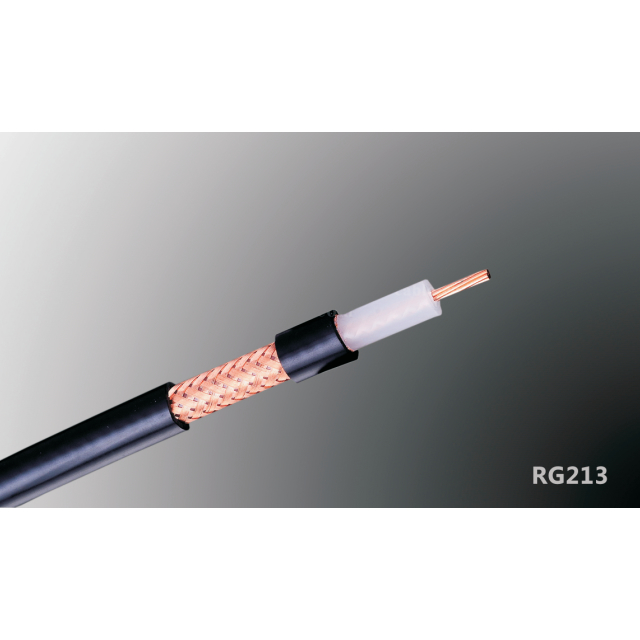

GLRG213
GLOBAL
8517710000
100PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Cable Construction | ||||
No | Material quality | Dimensions | ||
1.Inner Conductor | Copper winch | Φ2.28±0.02mm | ||
2.Insulation | Solid polyethylene PE | Ф7.24±0.1mm | ||
3.Braid | Bare copper wire | Ф7.89±0.1mm | ||
4.Jacket | Black PVC | Φ10.0±0.1mm | ||
Mechanical Characteristics and Electrical Performance Parameters | ||||
Impedance | 50±2Ω | |||
Capacitance | 105.6±2PF/M | |||
Velocity | 65.9% | |||
Peak Power | 3.5KW | |||
Inner Conductor Dc resistance | ≥4.225ohms/1000m | |||
Outer Conductor Dc resistance | ≥5.309ohms/1000m | |||
Cutoff Frequency | 11GHz | |||
Operating Temperature (℃) | -40~+85℃ | |||
VSWR | DC~3GHz | <1.25 | ||
Cable Construction | ||||
No | Material quality | Dimensions | ||
1.Inner Conductor | Copper winch | Φ2.28±0.02mm | ||
2.Insulation | Solid polyethylene PE | Ф7.24±0.1mm | ||
3.Braid | Bare copper wire | Ф7.89±0.1mm | ||
4.Jacket | Black PVC | Φ10.0±0.1mm | ||
Mechanical Characteristics and Electrical Performance Parameters | ||||
Impedance | 50±2Ω | |||
Capacitance | 105.6±2PF/M | |||
Velocity | 65.9% | |||
Peak Power | 3.5KW | |||
Inner Conductor Dc resistance | ≥4.225ohms/1000m | |||
Outer Conductor Dc resistance | ≥5.309ohms/1000m | |||
Cutoff Frequency | 11GHz | |||
Operating Temperature (℃) | -40~+85℃ | |||
VSWR | DC~3GHz | <1.25 | ||
