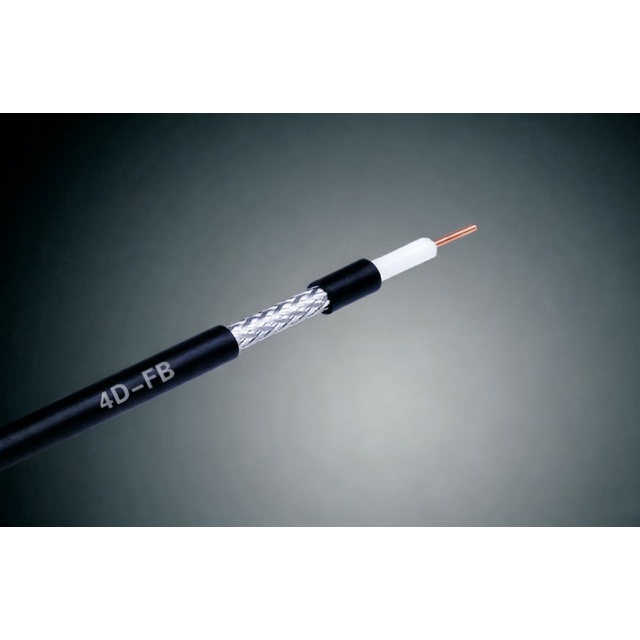

21GHz 2.6KW High-Power Coaxial Cable

No

Material quality

Dimensions

1.Inner Conductor

Copper clad steel or Bare Copper

Φ1.38±0.02mm

2.Insulation

Foam FPE

Ф3.95±0.1mm

3.Outer Conductor

single-sided aluminum tape(15.5*0.06mm)

Ф4.13±0.1mm

4.Braid

Tinned Copper Al-Mg alloy wire

Ф4.6±0.1mm

5.Jacket

PVC or PE

Φ6.25±0.1mm

Mechanical Characteristics and Electrical Performance Parameters

Impedance

50±2Ω

Capacitance

84±2PF/M

Velocity

82%

Peak Power

2.6KW

Inner Conductor Dc resistance

≥54.9ohms/1000m

Outer Conductor Dc resistance

≥16.7ohms/1000m

Cutoff Frequency

21GHz

Operating Temperature(℃)

-40~+85℃

VSWR

DC~3GHz

<1.15

3~6GHz

<1.25
