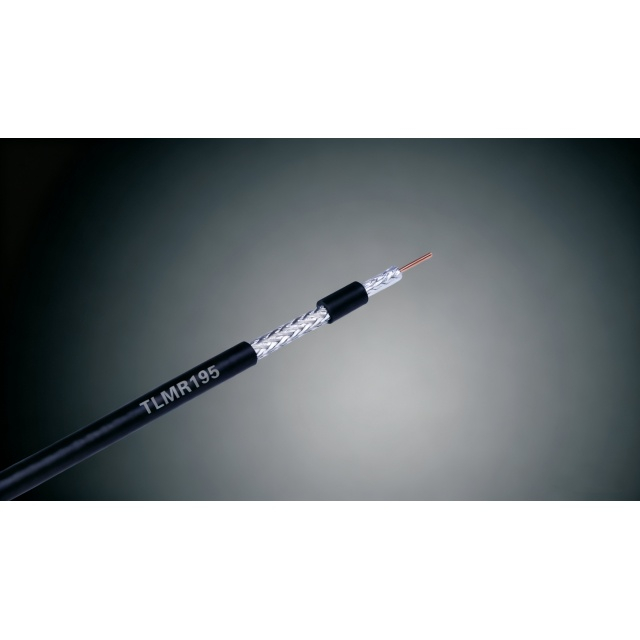

2.5KW Coaxial Cable Bare Copper Core

No

Material quality

Dimensions

1.Inner Conductor

Bare Copper

Φ0.94±0.02mm

2.Insulation

Foam FPE

Ф2.79±0.1mm

3.Outer Conductor

Dual AI Foil

Ф2.98±0.1mm

4.Braid

Tinned Copper or aluminum magnesium alloy braiding

Ф3.45±0.1mm

5.Jacket

PVC or PE

Φ4.8±0.1mm

Mechanical Characteristics and Electrical Performance Parameters

Impedance

50±2Ω

Capacitance

83±2PF/M

Velocity

76%

Peak Power

2.5KW

Inner Conductor Dc resistance

≥24.86ohms/1000m

Outer Conductor Dc resistance

≥16.1ohms/1000m

Cutoff Frequency

15GHz

Operating Temperature (℃)

-40~+85℃

VSWR

DC~6GHz

<1.25
