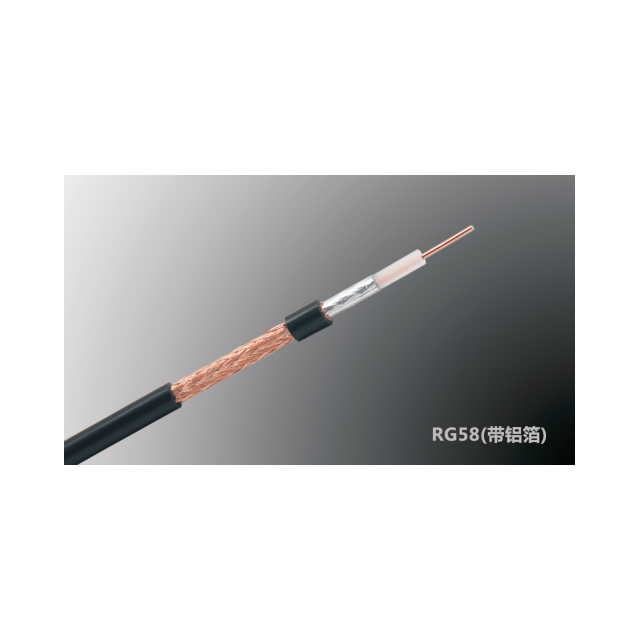

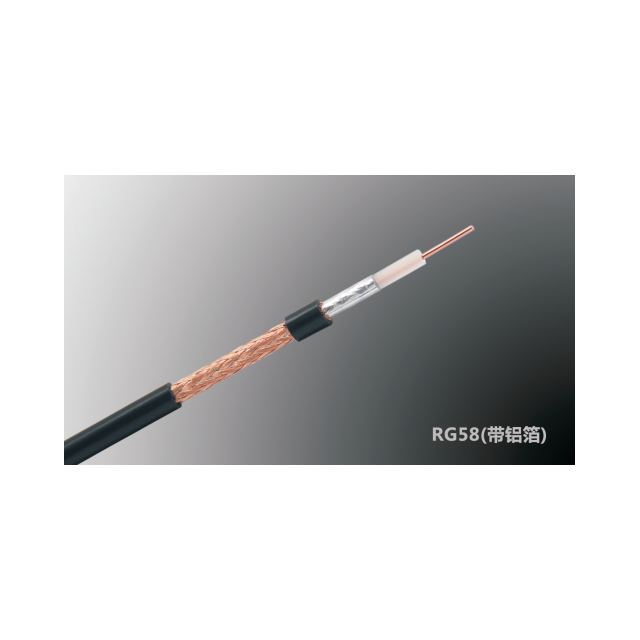

2.2KW Coaxial Cable with aluminum foil

No

Material quality

Dimensions

1.Inner Conductor

Bare copper wire

Φ0.9±0.02mm

2.Insulation

Solid polyethylene PE

Ф2.95±0.1mm

3.Outer Conductor

single-sided aluminum tape

Ф3.05±0.1mm

4.Braid

Copper clad Al-Mg alloy wire

Ф3.65±0.1mm

5.Jacket

Polyvinyl chloride PVC

Φ4.95±0.1mm

Mechanical Characteristics and Electrical Performance Parameters

Impedance

50±2Ω

Capacitance

105.6±2PF/M

Velocity

66%

Peak Power

2.2KW

Inner Conductor Dc resistance

≥26.94ohms/1000m

Outer Conductor Dc resistance

≥18.02ohms/1000m

Cutoff Frequency

6GHz

Operating Temperature (℃)

-20~+70℃

VSWR

DC~3GHz

<1.20
