GLRG303
GLOBAL
8517710000
100PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

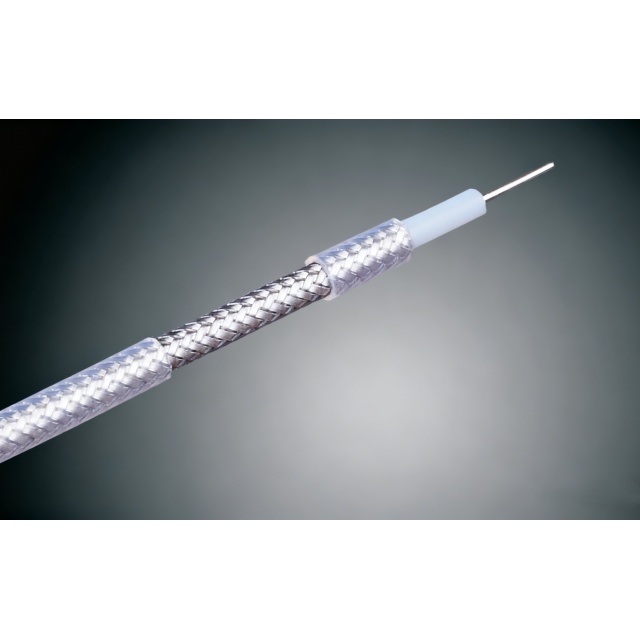

Cable Construction | ||||
No | Material quality | Dimensions | ||
1.Inner Conductor | Silver plated copper / Silver plated copper coated steel | Φ0.93±0.02mm | ||
2.Insulation | PTFE | Ф2.95±0.1mm | ||
3.Braid | Silver plated copper wire | Ф3.7±0.1mm | ||
4.Jacket | FEP | Φ4.3±0.1mm | ||
Mechanical Characteristics and Electrical Performance Parameters | ||||
Impedance | 50±2Ω | |||
Capacitance | 95.1±2PF/M | |||
Velocity | 69.5% | |||
Peak Power | 2.1KW | |||
Inner Conductor Dc resistance | ≥25.23ohms/1000m | |||
Outer Conductor Dc resistance | ≥6.028ohms/1000m | |||
Cutoff Frequency | 41GHz | |||
Operating Temperature (℃) | -55~+200℃ | |||
VSWR | DC~3GHz | <1.25 | ||
Cable Construction | ||||
No | Material quality | Dimensions | ||
1.Inner Conductor | Silver plated copper / Silver plated copper coated steel | Φ0.93±0.02mm | ||
2.Insulation | PTFE | Ф2.95±0.1mm | ||
3.Braid | Silver plated copper wire | Ф3.7±0.1mm | ||
4.Jacket | FEP | Φ4.3±0.1mm | ||
Mechanical Characteristics and Electrical Performance Parameters | ||||
Impedance | 50±2Ω | |||
Capacitance | 95.1±2PF/M | |||
Velocity | 69.5% | |||
Peak Power | 2.1KW | |||
Inner Conductor Dc resistance | ≥25.23ohms/1000m | |||
Outer Conductor Dc resistance | ≥6.028ohms/1000m | |||
Cutoff Frequency | 41GHz | |||
Operating Temperature (℃) | -55~+200℃ | |||
VSWR | DC~3GHz | <1.25 | ||
