18G Straight Semi-rigid Cable connectors

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product No.	181A-7663	181A-7664	181D-7661	181D-7662
Product type	SMA-JB2	SMA-JB3	SMA-JB2G	SMA-JB3G
Apply cable	.086	.141	.086	.141
Plug(male)-mm	2.2	3.6	2.2	3.6

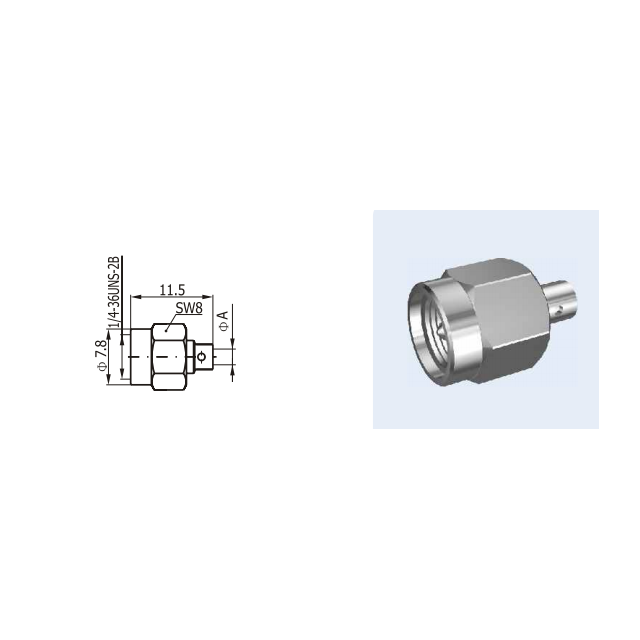

Deminsions-mm	Ø7.8*11.5
Temperature Range	-65 ~ +165 ℃
Characteristic Impedance	50 Ω
Frequency Range	0~18GHz
VSWR	≤1.05+0.02F
Insulation Resistance	> 5000 MΩ
Dielectric Withstanding Voltage	1000 V (rms)
Contact Resistance	Center conductor: < 3 mΩ, Outer conductor: < 2 mΩ Outer conductor: < 2 mΩ
Durability	500 cycles
MATERIAL AND PLATING
Body	Brass, gold plated or Stainless steel, passivated
Male Center Contacts	Brass, gold plated
Female Center Contacts	Beryllium copper, gold plated
Insulators	PTFE
Gaskets	Silicon rubber
Crimp Ferrules	Copper alloy, silver or gold plated
