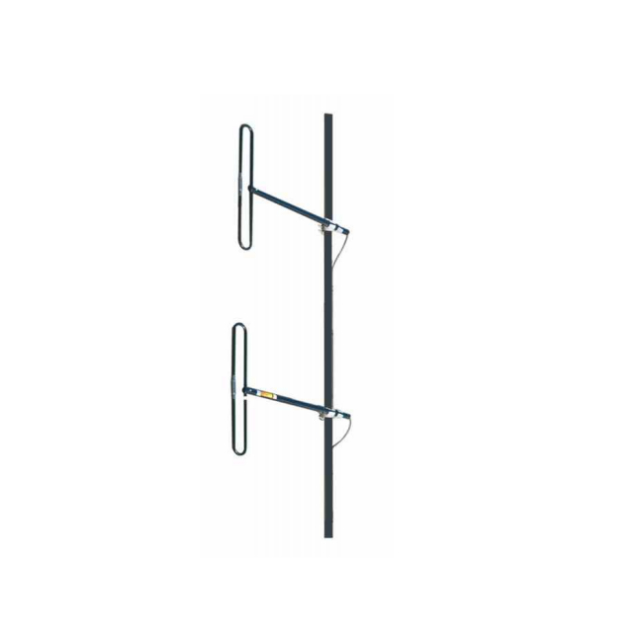

145-175MHz3-5.6dBIFiberglass antenna

GL-DY150Q6A

Electrical Index

Frequency-MHz

145-175

Bandwidth-MHz

30

Gain-dBi

3-5.6

Vertical Beamwidth-°

35

VSWR

≤1.5

Nominal Impedance-Ω

50

Polarization

Vertical

Maximum Power-W

300

Length-m

3.0*1.0

Weight-kg

12

Rated Wind Velocity- m/ s

60

Connector

N Female or 7/16DIN Female

Remarks

SThe antenna includes a main pole and JM-DB clamp code (to be provided by the pole user)
