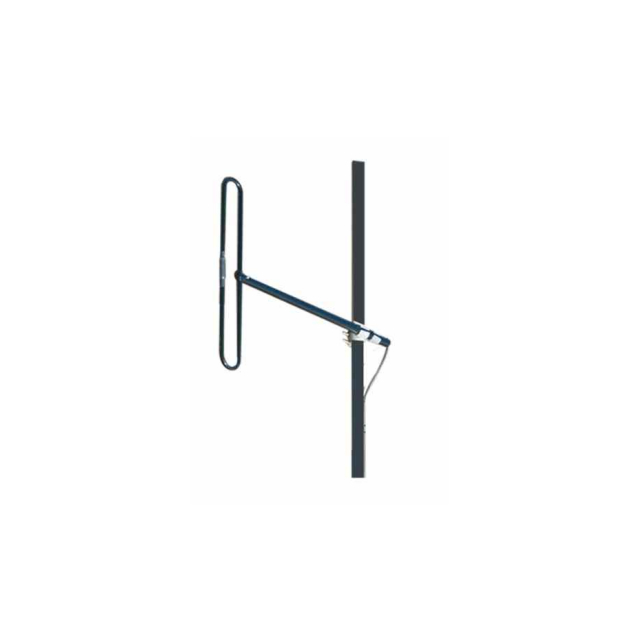

145-175MHz1-2.5dBIFiberglass antenna

GL-DY150Q3A

Electrical Index

Frequency-MHz

145-175

Bandwidth-MHz

30

Gain-dBi

1-2.5

Vertical Beamwidth-°

80

VSWR

≤1.5

Nominal Impedance-Ω

50

Polarization

Vertical

Maximum Power-W

300

Length-m

1.4*1.0

Weight-kg

5.5

Rated Wind Velocity- m/ s

60

Connector

N Female or 7/16DIN Female

Remarks

SThe antenna includes a main pole and JM-DB clamp code (to be provided by the pole user)
