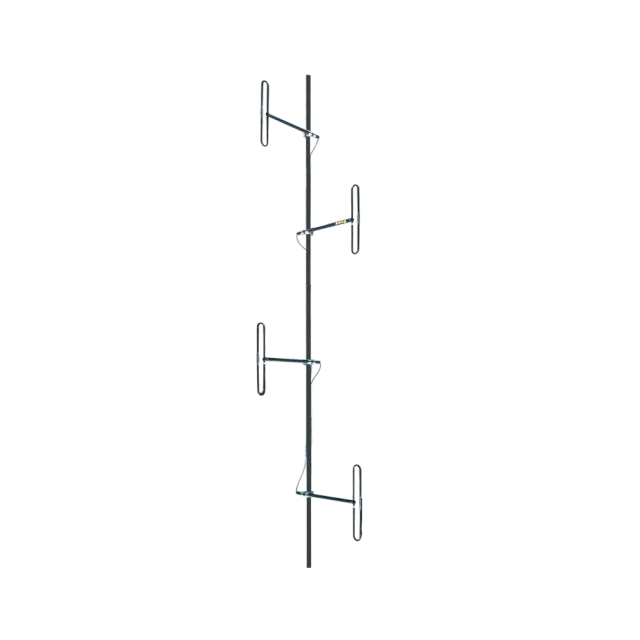

144-174MHz6-9dBIFiberglass antenna

GL-DY150Q9A

Electrical Index

Frequency-MHz

144-174

Bandwidth-MHz

30

Gain-dBi

6-9

Vertical Beamwidth-°

18

VSWR

≤1.5

Nominal Impedance-Ω

50

Polarization

Vertical

Maximum Power-W

300

Length-m

5.0*0.9

Weight-kg

13

Rated Wind Velocity- m/ s

60

Connector

N Female or 7/16DIN Female

Remarks

SThe antenna includes a main pole and JM-DB clamp code (to be provided by the pole user)
