GL1500B
GLOBAL
8517710000
10PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

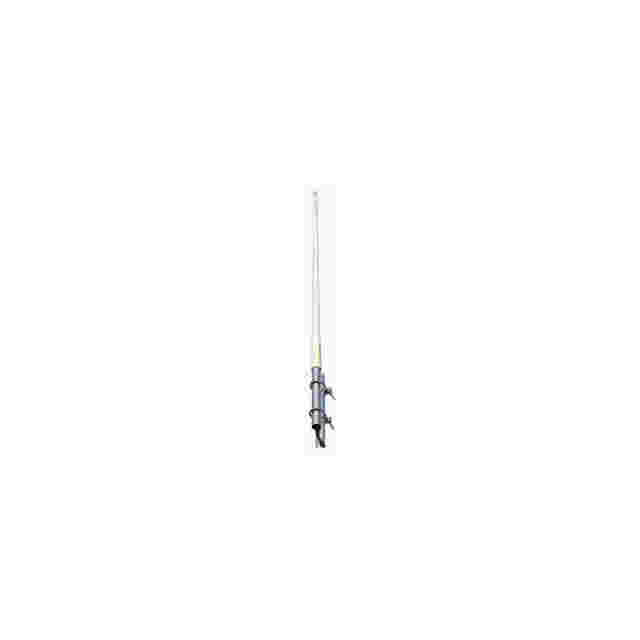

Item | Fiberglass Antenna |
PN |
|
Frequency(Mhz) | 1400-1550 |
Bandwidth(MHz) | 40 |
Gain(dBi) | 12 |
Vertical Beamwidth(°) | 9.5 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(m) | 1.8 |
Weight(kg) | 1.5 |
Connector | N Female or Customization |
Rated Wind Velocity(m/s) | 60 |
Mounting Mast Diameter(mm) | φ40-50 |
Item | Fiberglass Antenna |
PN |
|
Frequency(Mhz) | 1400-1550 |
Bandwidth(MHz) | 40 |
Gain(dBi) | 12 |
Vertical Beamwidth(°) | 9.5 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(m) | 1.8 |
Weight(kg) | 1.5 |
Connector | N Female or Customization |
Rated Wind Velocity(m/s) | 60 |
Mounting Mast Diameter(mm) | φ40-50 |
