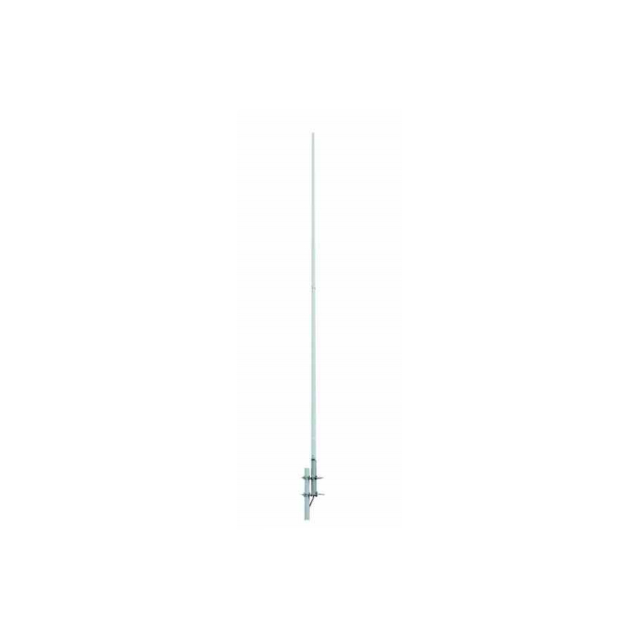

137-174MHz8.7dBIOmni Antennas

GL-DY150MB 137-174MHz 8.7dBI VSWR ≤1.5（Center Frequency≤1.2） Connector UHF or N female

  • GL-DY150MB

  • GLOBAL

  • 8517710000

  • 10pc

  • Accepted

  • 1000PC/Day

Availability:
Quantity:
Inquiry Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Omni Antennas

GL-DY150MB

Electrical Index

Frequency-MHz

134-173

Bandwidth-MHz

2.5

Gain-dBi

8.7

Vertical Beamwidth-°

13.5

VSWR

≤1.5（Center Frequency≤1.2）

Nominal Impedance-Ω

50

Polarization

Vertical

Maximum Power-W

150

Length-m

5.7

Weight-kg

5.0

Rated Wind Velocity- m/ s

60

Connector

UHF or N female

Remarks

Fiberglass Separated into two parts

company

137-174MHz8.7dBIVSWR ≤1.5（Center Frequency≤1.2）Connector UHF or N female
