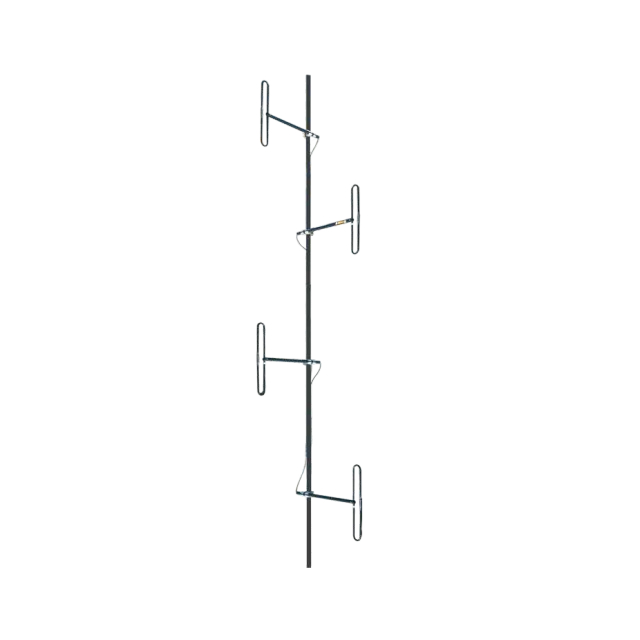

134-174MHz6.9dBiFiberglass antenna

GL-DY015Q9A

Electrical Index

Frequency-MHz

134-174

Bandwidth-MHz

40

Gain-dBi

6-9

Vertical Beamwidth-°

18

VSWR

134-144≤2.8(Max),

144-174≤1.5

Nominal Impedance-Ω

50

Polarization

Vertical

Maximum Power-W

300

Length-m

5.8*1.2

Weight-kg

14

Rated Wind Velocity- m/ s

60

Connector

N Female or 7/16DIN Female

Remarks

SThe antenna includes a main pole and JM-DB clamp code (to be provided by the pole user)
