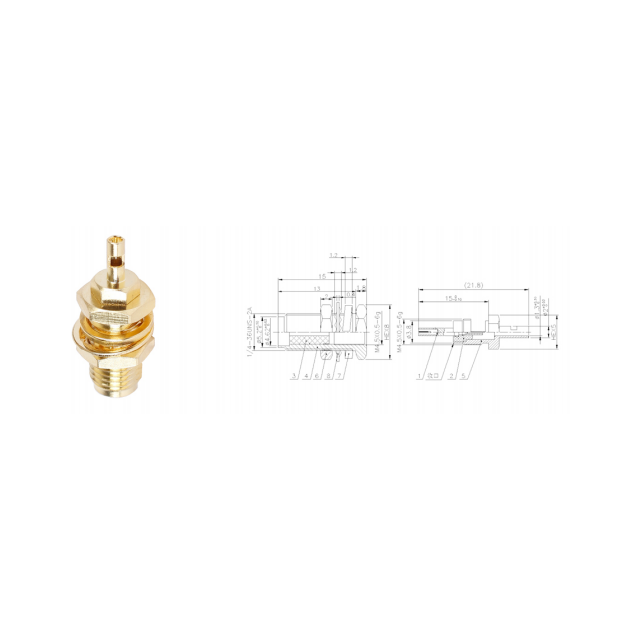

10Ghz SMA Split Type Connector

Frequency Range(GHz) 10 Impedance(ohm) 50 VSWR 1.10/1.15 Test voltage(max) 2500 V PIM(3rd order) ≤-160 dBc @ 2 x 20 W Mating Cycles ≥ 500 Coupling Torque Max 1.7 Nm Recommended Coupling Torque 0.7-1.1 Nm Temperature Range -55℃-+155℃ Outer Contact Brass CuSnZn Plating Center Contact Brass Ag Plating Cable Group N/A Plating CuSnZn Length(mm) Ф5.2*15*8
