GLB15BMA
GLOBAL
8517710000
100pc
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 0-4 | |
Characteristic impedance(ohm) | 50 | |
Max power (W) | 50 | |
VSWR | ≤1.30 | |
Insulation resistance | >5000MΩ | |
Dielectric Withstanding voltage | 750V(rms) | |
Contact resistance | Center conductor | ≤3mΩ |
Outer conductor | ≤2mΩ | |
Connector | BMA | |
MATERIAL AND PLATING | ||
Lighting protection | DC grounding | |
Body | stainless steel passivated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper ,gold plated | |
Insulators | PTFE | |
Crimp ferrules | copper alloy,nickel plated | |
Temperature range | -65~+125℃ | |
Broad Frequency Range – Supports DC to 6 GHz, suitable for a wide variety of RF and microwave applications.
Low VSWR ≤1.30 – Ensures minimal signal reflection and excellent impedance matching for high-frequency integrity.
Robust Construction – Stainless steel passivated body and gold-plated contacts provide durability and reliable conductivity.
High Power Handling – Capable of handling up to 50 watts, making it suitable for moderate power transmission.
Reliable Insulation – PTFE insulator and high insulation resistance (>5000MΩ) ensure stable performance and safety.
Telecommunications Equipment – Used in base stations, antennas, and RF modules for signal transmission.
Test and Measurement – Ideal for connecting spectrum analyzers, signal generators, and network analyzers.
Wireless Infrastructure – Suitable for Wi-Fi, LTE, and 5G distributed antenna systems (DAS).
Aerospace and Defense – Employed in radar systems, avionics, and communication devices requiring reliable RF connections.
Industrial RF Applications – Used in RFID systems, medical equipment, and industrial heating devices.
Q: What is the frequency range of the GLB15BMA connector?
A: It operates from DC to 6 GHz.
Q: What is the VSWR specification?
A: VSWR is ≤1.30 across the entire frequency range.
Q: What is the maximum power handling?
A: It can handle up to 50 watts (CW).
Q: What materials are used in the connector?
A: The body is stainless steel passivated, female center contacts are gold-plated beryllium copper, insulators are PTFE, and crimp ferrules are nickel-plated copper alloy.
Q: Is the connector weatherproof?
A: The connector itself is not specifically weatherproof, but it can be used in indoor or protected outdoor environments. The temperature range is -65°C to +125°C.
Q: What type of interface does it have?

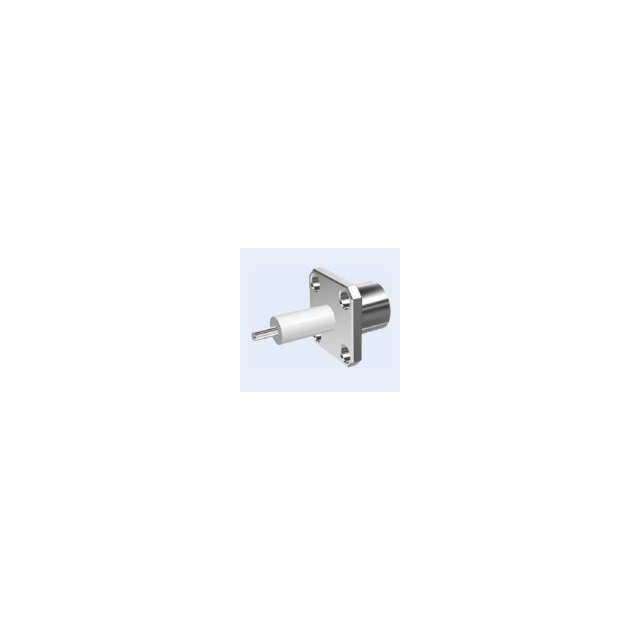

A: It is a BMA straight flange mount jack (female), compatible with standard BMA plug connectors.
Frequency Range(GHz) | 0-4 | |
Characteristic impedance(ohm) | 50 | |
Max power (W) | 50 | |
VSWR | ≤1.30 | |
Insulation resistance | >5000MΩ | |
Dielectric Withstanding voltage | 750V(rms) | |
Contact resistance | Center conductor | ≤3mΩ |
Outer conductor | ≤2mΩ | |
Connector | BMA | |
MATERIAL AND PLATING | ||
Lighting protection | DC grounding | |
Body | stainless steel passivated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper ,gold plated | |
Insulators | PTFE | |
Crimp ferrules | copper alloy,nickel plated | |
Temperature range | -65~+125℃ | |
Broad Frequency Range – Supports DC to 6 GHz, suitable for a wide variety of RF and microwave applications.
Low VSWR ≤1.30 – Ensures minimal signal reflection and excellent impedance matching for high-frequency integrity.
Robust Construction – Stainless steel passivated body and gold-plated contacts provide durability and reliable conductivity.
High Power Handling – Capable of handling up to 50 watts, making it suitable for moderate power transmission.
Reliable Insulation – PTFE insulator and high insulation resistance (>5000MΩ) ensure stable performance and safety.
Telecommunications Equipment – Used in base stations, antennas, and RF modules for signal transmission.
Test and Measurement – Ideal for connecting spectrum analyzers, signal generators, and network analyzers.
Wireless Infrastructure – Suitable for Wi-Fi, LTE, and 5G distributed antenna systems (DAS).
Aerospace and Defense – Employed in radar systems, avionics, and communication devices requiring reliable RF connections.
Industrial RF Applications – Used in RFID systems, medical equipment, and industrial heating devices.
Q: What is the frequency range of the GLB15BMA connector?
A: It operates from DC to 6 GHz.
Q: What is the VSWR specification?
A: VSWR is ≤1.30 across the entire frequency range.
Q: What is the maximum power handling?
A: It can handle up to 50 watts (CW).
Q: What materials are used in the connector?
A: The body is stainless steel passivated, female center contacts are gold-plated beryllium copper, insulators are PTFE, and crimp ferrules are nickel-plated copper alloy.
Q: Is the connector weatherproof?
A: The connector itself is not specifically weatherproof, but it can be used in indoor or protected outdoor environments. The temperature range is -65°C to +125°C.
Q: What type of interface does it have?
A: It is a BMA straight flange mount jack (female), compatible with standard BMA plug connectors.
