GLB12BMA
GLOBAL
8517710000
100pc
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 0-5 | |
Characteristic impedance(ohm) | 50 | |
Max power (W) | 50 | |
VSWR | ≤1.30 | |
Insulation resistance | >5000MΩ | |
Dielectric Withstanding voltage | 750V(rms) | |
Contact resistance | Center conductor | ≤3mΩ |
Outer conductor | ≤2mΩ | |
Connector | BMA | |
MATERIAL AND PLATING | ||
Lighting protection | DC grounding | |
Body | stainless steel passivated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper ,gold plated | |
Insulators | PTFE | |
Crimp ferrules | copper alloy,nickel plated | |
Temperature range | -65~+125℃ | |

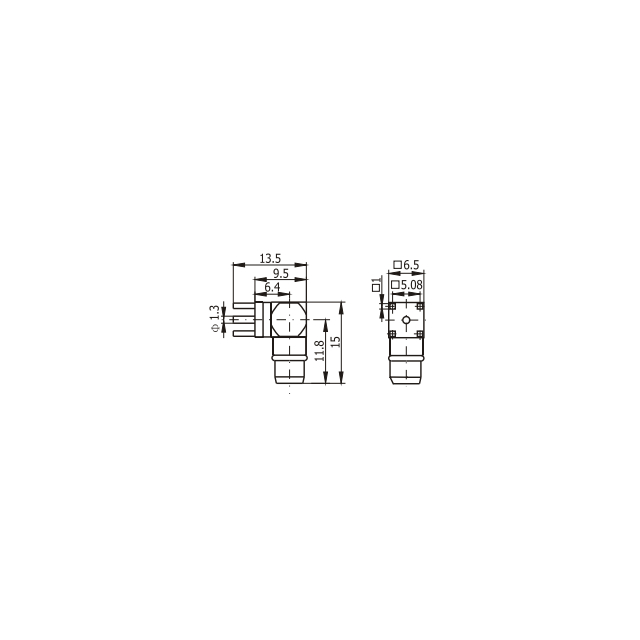

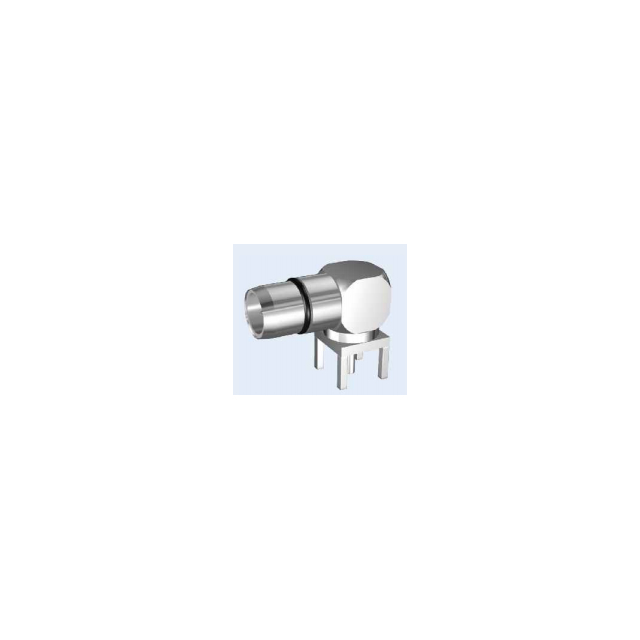

Wide Frequency Range – Supports DC to 5 GHz, suitable for diverse RF and microwave circuit designs.
Right Angle PCB Mount – Space-saving design allows for low-profile integration on printed circuit boards.
Low VSWR ≤1.30 – Ensures excellent impedance matching and minimal signal reflection across the entire band.
High-Quality Materials – Stainless steel passivated body, gold-plated contacts, and PTFE insulator guarantee durability and stable performance.
Reliable Electrical Performance – High insulation resistance (>5000MΩ), low contact resistance (center ≤3mΩ, outer ≤2mΩ), and 50W power handling.
Telecommunications Infrastructure – Used in base station boards, RF modules, and antenna interface circuits.
Test Equipment – Ideal for PCB-mounted connections in network analyzers, oscilloscopes, and signal generators.
Wireless Systems – Suitable for Wi-Fi, LTE, and 5G small cell backhaul boards.
Aerospace and Defense Electronics – Employed in radar, avionics, and secure communication systems requiring reliable PCB interconnects.
Industrial RF Devices – Used in RFID readers, medical imaging equipment, and industrial monitoring systems.
Q: What frequency range does the GLB12BMA support?
A: It operates from DC to 5 GHz.
Q: What is the VSWR specification?
A: VSWR is ≤1.30 across the entire frequency range.
Q: What is the maximum power handling capability?
A: It can handle up to 50 watts (CW).
Q: What materials are used in this connector?
A: The body is stainless steel passivated, center contacts are gold-plated brass (male) or beryllium copper (female), insulators are PTFE, and crimp ferrules are nickel-plated copper alloy.
Q: Is this connector designed for through-hole PCB mounting?
A: Yes, it is a right angle PCB plug designed for through-hole soldering on printed circuit boards.
Q: What is the temperature range for operation?
A: It operates reliably from -65°C to +125°C.
Frequency Range(GHz) | 0-5 | |
Characteristic impedance(ohm) | 50 | |
Max power (W) | 50 | |
VSWR | ≤1.30 | |
Insulation resistance | >5000MΩ | |
Dielectric Withstanding voltage | 750V(rms) | |
Contact resistance | Center conductor | ≤3mΩ |
Outer conductor | ≤2mΩ | |
Connector | BMA | |
MATERIAL AND PLATING | ||
Lighting protection | DC grounding | |
Body | stainless steel passivated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper ,gold plated | |
Insulators | PTFE | |
Crimp ferrules | copper alloy,nickel plated | |
Temperature range | -65~+125℃ | |
Wide Frequency Range – Supports DC to 5 GHz, suitable for diverse RF and microwave circuit designs.
Right Angle PCB Mount – Space-saving design allows for low-profile integration on printed circuit boards.
Low VSWR ≤1.30 – Ensures excellent impedance matching and minimal signal reflection across the entire band.
High-Quality Materials – Stainless steel passivated body, gold-plated contacts, and PTFE insulator guarantee durability and stable performance.
Reliable Electrical Performance – High insulation resistance (>5000MΩ), low contact resistance (center ≤3mΩ, outer ≤2mΩ), and 50W power handling.
Telecommunications Infrastructure – Used in base station boards, RF modules, and antenna interface circuits.
Test Equipment – Ideal for PCB-mounted connections in network analyzers, oscilloscopes, and signal generators.
Wireless Systems – Suitable for Wi-Fi, LTE, and 5G small cell backhaul boards.
Aerospace and Defense Electronics – Employed in radar, avionics, and secure communication systems requiring reliable PCB interconnects.
Industrial RF Devices – Used in RFID readers, medical imaging equipment, and industrial monitoring systems.
Q: What frequency range does the GLB12BMA support?
A: It operates from DC to 5 GHz.
Q: What is the VSWR specification?
A: VSWR is ≤1.30 across the entire frequency range.
Q: What is the maximum power handling capability?
A: It can handle up to 50 watts (CW).
Q: What materials are used in this connector?
A: The body is stainless steel passivated, center contacts are gold-plated brass (male) or beryllium copper (female), insulators are PTFE, and crimp ferrules are nickel-plated copper alloy.
Q: Is this connector designed for through-hole PCB mounting?
A: Yes, it is a right angle PCB plug designed for through-hole soldering on printed circuit boards.
Q: What is the temperature range for operation?
A: It operates reliably from -65°C to +125°C.
