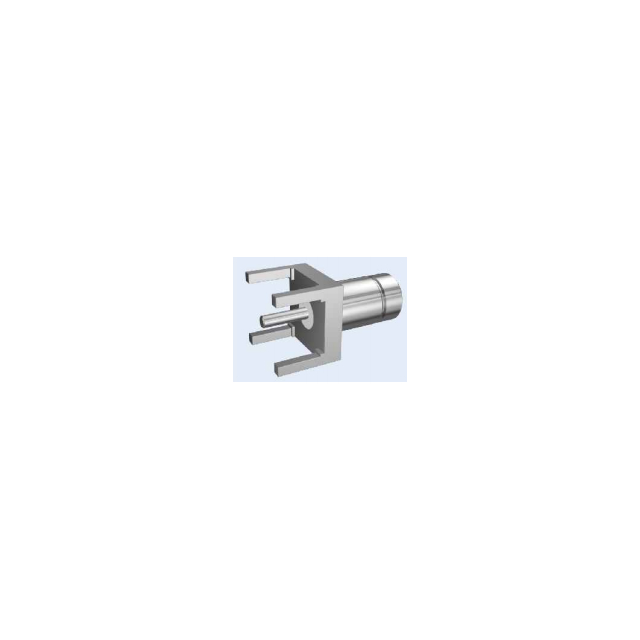

0-4GHz SMB Straight PCB Female Jack

  • GLSMB11

  • GLOBAL

  • 8517710000

  • 100pc

  • Accepted

  • 10000PC/Day

  • GLSMB11.pdf

Availability:
Quantity:
Inquiry Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Frequency Range(GHz) 0-4 Characteristic impedance(ohm) 50 VSWR ≤1.3 Insulation resistance ≥1000MΩ Dielectric Withstanding voltage 750V(rms) Voltage rating 250V(rms) Contact resistance Center conductor ≤6mΩ Outer conductor ≤1mΩ Connector SAA Length(mm) Ф3.7*11.4 Durability 500 Cycles MATERIAL AND PLATING Body Brass,gold plated Male center contacts Brass,gold plated Female center contacts Beryllium copper,gold plated Insulators PTFE Spring contacts Beryllium copper ,gold plated Crimp ferrules Copper alloy,gold or nickel plated Temperature range -65~+165℃

SMB Straight PCB connector
