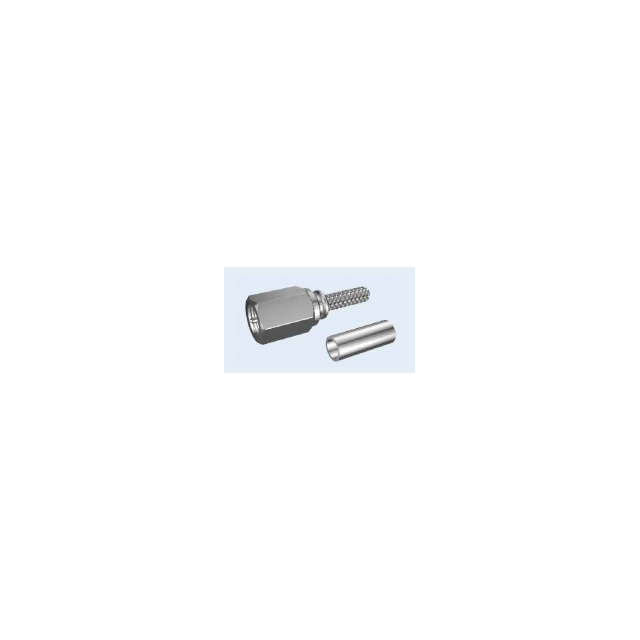

GLFMEC2
GLOBAL
8517710000
100pc
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 0-3 | |
Characteristic impedance(ohm) | 50 | |
VSWR | ≤1.22 | |
Insulation resistance | ≥5000MΩ | |
Dielectric Withstanding voltage | 1000V(rms) | |
Working Voltage | 500V(rms) | |
Contact resistance | Center conductor | ≤10mΩ |
Outer conductor | ≤5mΩ | |
Connector | FME | |
Apply cable | 5/50s | |
Length(mm) | Ф5.2*32.5 | |
Durability | 500 Cycles | |
MATERIAL AND PLATING | ||
Body | Brass,nickel plated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper,gold plated | |
Insulators | PTFE | |
Crimp ferrules | copper alloy,nickel plated | |
Temperature range | -65~+155℃ | |
