GLSY-GPS433 Dual-Frequency Rubber Antenna

GLSY-GPS433 is a rubber antenna supplied with a model-specific RF test report and a dimensioned outline. Its 80 mm body and 12 mm base diameter provide a compact mechanical profile for enclosure and connector-space planning.

The cover names the product GPS+433, while the main specification table and gain/efficiency results identify 410 MHz and 1555 MHz. The numerical specifications on this page follow those documented frequencies; the model name alone does not establish 433 MHz performance.

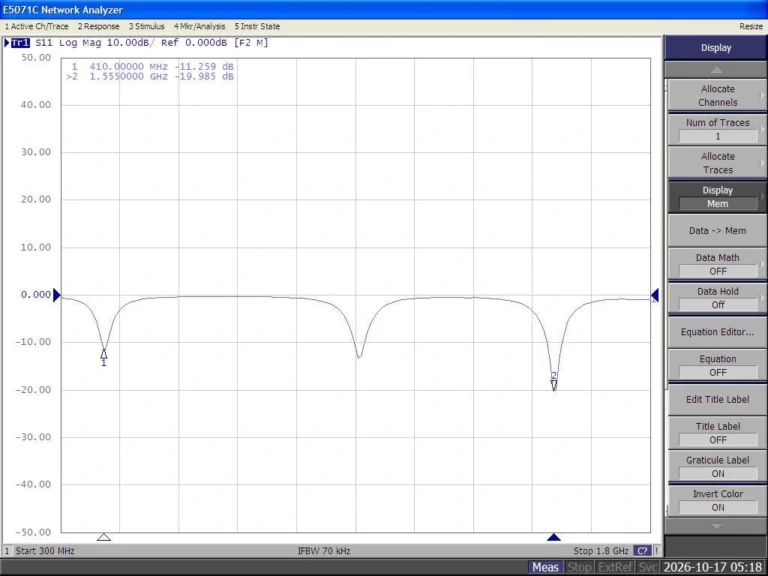

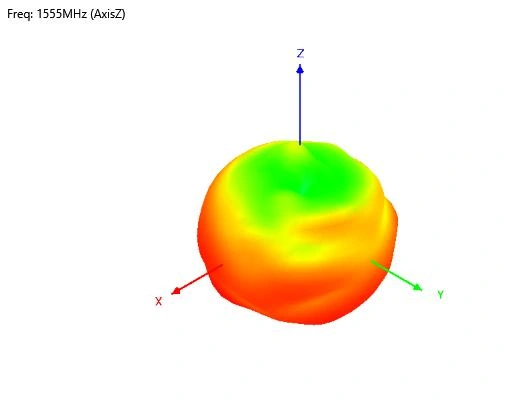

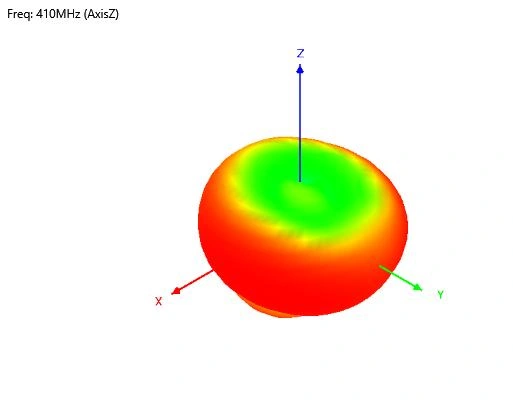

The report lists vertical polarization, nominal 50 ohm impedance and maximum VSWR of 2.0. It includes an S11 log-magnitude trace and radiation-pattern plots, plus separate measured gain and efficiency results at the two test frequencies. These results describe the supplied sample at those points rather than a continuous operating band.

Minimum order: 100 units. Lead time: 2 weeks.
