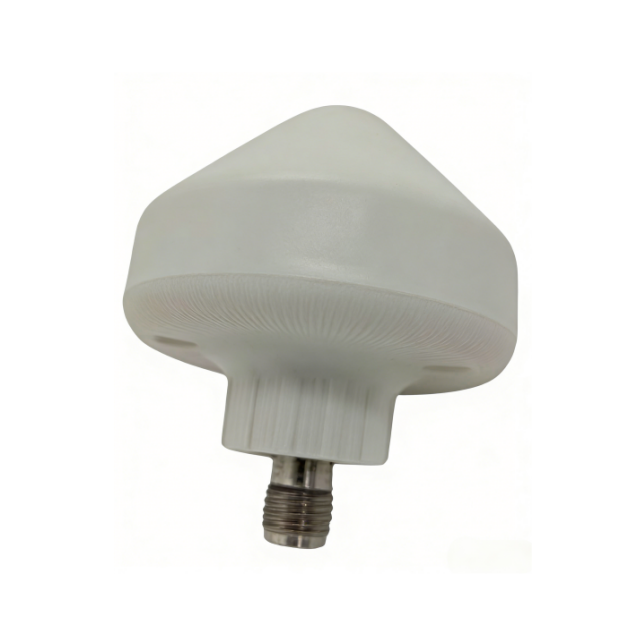

GPS Antenna Technical Specifications
technical requirement | qualification |
Frequency（MHz） | 1575.42±5 1561.098±2.046 |
Gain（dBi） | ≥4 |
Output VSWR(dB) | ≤1.5 |
Polarization | RHCP |
Impendance (Ω) | 50 |
Antenna performance
technical requirement | qualification |
Range Of Receiving Frequency（MHz） | 1575.42±5 1561.098±2.046 |
Polarization | RHCP |
Gain（dBi） | 38±2 |
Axis ratio（dB） | < 4.5@center frequency |
3dB beam width ( ° ) | 110±10 |
Output VSWR | ≤ 2.0:1 |
Output impedance（ohm） | 50 |
Out of band rejection（dBc） | 1575+30 MHz /1561-30 MHz：12 dBc min |
1575+50MHz/1561-50MHz：35 dBc min | |
1575+100MHz/1561-100MHz：70 dBc min | |
LNA NF | ≤2.7dB 20℃下 test |
LNA Output VSWR | <2:1 |
1dB compression point output（dBm） | >-10dBm（仅 LNA） |
Operating current（mA） | < 20 |
Prime power（V） | 3～6 |
Work environment
Relative Humidity（%） | 5～90 |
Operating Temperature (℃) | -40～ +80 |
Store Temperature (℃) | -40～ +90 |
Operation Environment | Outdoor, Meet IP67 ， Capable of resisting salt fog, humidity, sulfur dioxide in the atmosphere, and ultraviolet radiation |
Structural property
Dimension（mm） | Refer to structural drawings |
Connector | N-K |

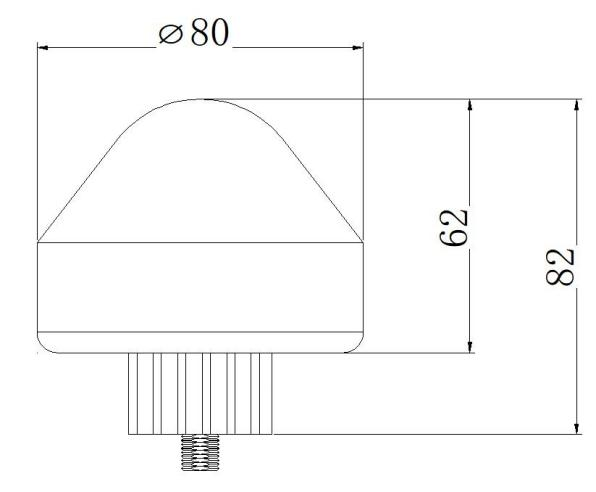

Drawing dimension
Product introduction
1. Exceptional Gain & Low Noise
Features a built-in LNA with 38±2 dBi gain and ≤2.7dB noise figure, ensuring strong signal reception even in challenging environments while maintaining high signal-to-noise ratio for precise time synchronization.
2. Wide Frequency Coverage & RHCP
Supports GPS L1 (1575.42±5 MHz) and BeiDou B1 (1561.098±2.046 MHz) with right-hand circular polarization. The excellent axial ratio (<4.5dB at center frequency) minimizes multipath errors for reliable positioning.
3. Rugged IP67 Outdoor Design
Fully sealed against dust and water (IP67), resistant to salt fog, humidity, SO₂, and UV radiation. Operates flawlessly from -40°C to +80°C, making it suitable for harsh outdoor installations.
4. Superior Out-of-Band Rejection
Provides up to 70 dBc rejection at ±100MHz from center frequencies, effectively filtering interference from nearby communication bands. This ensures clean signal output and stable GNSS performance.
5. Low Power Consumption & Robust Output
Draws <20 mA from 3–6V DC supply, with >10dBm 1dB compression point. The N‑K female connector offers reliable, low-loss RF connection for permanent or semi-permanent mounting.

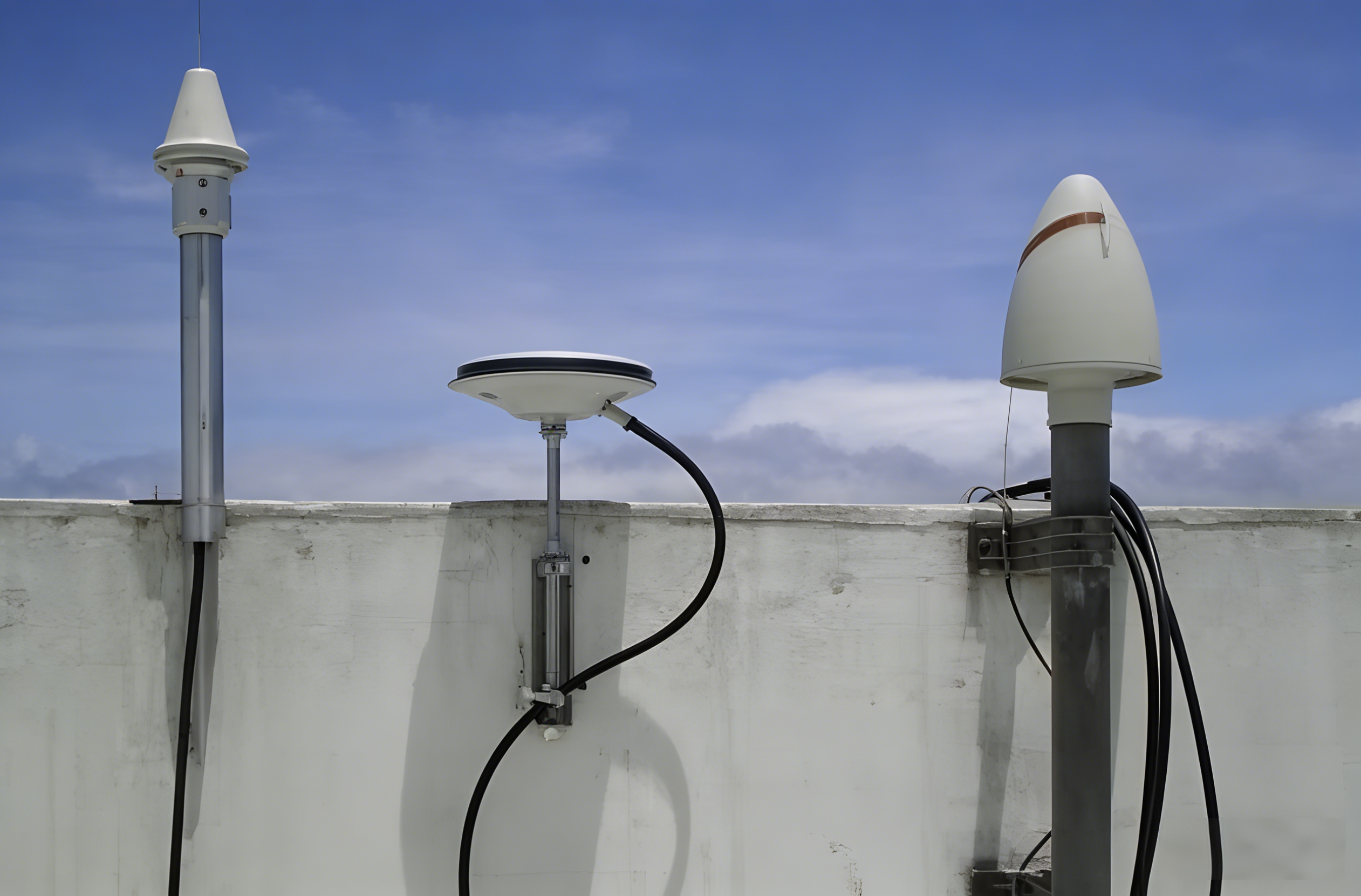

Application Scenarios
●Base Station Timing Synchronization – Provides precise GPS/BeiDou time reference for 4G/5G cellular base stations.
●Smart Grid & Power Substations – Delivers accurate timestamping for phasor measurement units (PMUs) and fault recorders.
●Marine & Port Navigation – IP67 corrosion resistance suits vessel tracking, buoy monitoring, and port container management.
●Unmanned Vehicles & Drones – Lightweight, high-gain design ensures stable GNSS lock for agricultural drones and autonomous robots.
●Traffic Management Systems – Used in electronic toll collection (ETC), traffic light synchronization, and fleet tracking infrastructure.
FAQ
Q: What GNSS bands does the GL111 support?
A: It supports GPS L1 (1575.42MHz) and BeiDou B1 (1561.098MHz). It is not designed for GLONASS or Galileo.
Q: What is the connector type?
A: The antenna comes with an N‑K female (N‑K) connector, suitable for outdoor coaxial cables.
Q: Can this antenna be used indoors?
A: While it can work indoors near windows, it is optimized for outdoor use with IP67 protection. Indoor use may reduce signal strength.
Q: What is the operating voltage and current?
A: It requires 3–6V DC (typically 5V) and consumes <20 mA. Power is usually supplied through the coaxial cable (bias tee).
Q: Does it include a built‑in LNA?
A: Yes, the GL111 integrates a low noise amplifier with 38±2 dBi gain and ≤2.7dB noise figure.
Q: What is the beamwidth of this antenna?
A: The 3dB beamwidth is 110°±10°, providing good coverage for most stationary and moving applications.
