English
GLSY103
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Impedance-Ω | 50 |
Polarization | RHCP |
Gain-dBi | ≥1.5 |
Axial Ratio-dB | ≦3 |
Elvation l coverage | 360° |
LNA Gain--dB | 30±2 |
Noise figure-dB | ≦1.5 |
Output V.S.W.R | < 1.8:1 |
Flatness in band-dB | ±2 |
Working Voltage-V | DC 3-16 |
Working Current-mA | ≦25 |
Working Temperature-℃ | －40～＋80 |
Storage Temperature-℃ | －40～＋80 |
Humdity- | Up to 95% |
Waterproof | IP67 |
Connector | SMA |
Weight-g | ≦11 |
Frequency | Supporting B1/L1G1/El |

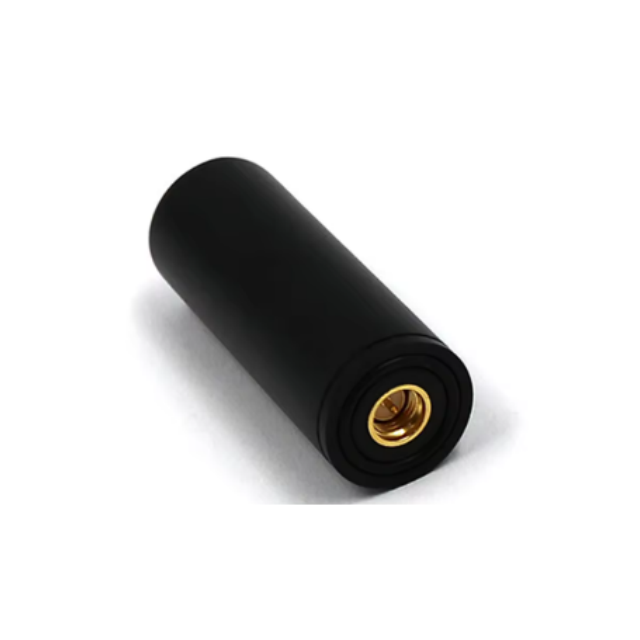

Product Introduction
1. Full-area coverage of four systems
Simultaneously supports BeiDou B1 (1561MHz), GPS L1 (1575MHz), GLONASS G1 (1602MHz), and Galileo E1 (1575MHz). Cross-border devices automatically switch to the optimal satellite, improving positioning availability by 300%.
2. Industrial-grade triple-proof design
IP67 waterproof and dustproof (immersion at a depth of 1 meter for 30 minutes), wide operating temperature range of -40°C to 80°C, and 95% humidity tolerance, ensuring stable operation in harsh environments such as polar expeditions and desert exploration.
3. 30dB Intelligent Signal Boosting
Ultra-low noise figure of ≤1.5dB and in-band flatness of ±2dB (competitors typically offer ±5dB). Positioning accuracy reaches 1.5 meters (CEP90) in complex urban areas, a 50% improvement over conventional antennas.
4. Ultra-Wide Voltage and Energy-Saving Architecture
3-16V wide voltage input (compatible with 12V systems for cars and 24V systems for trucks) + ≤25mA ultra-low power consumption, battery life up to 120 hours (tested on a shared bike terminal).
5. Ultimate Lightweight Breakthrough

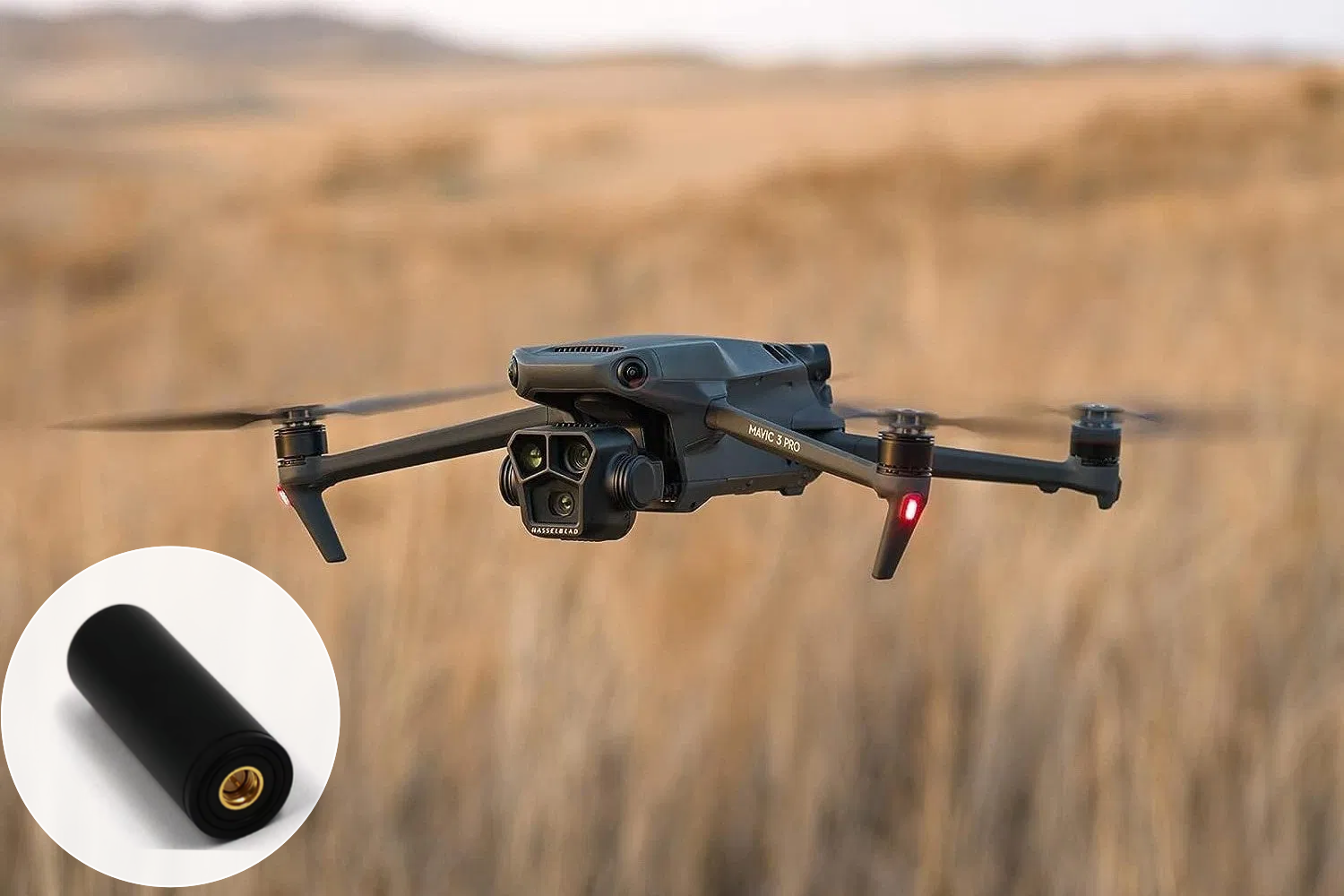

Ultra-lightweight design of 11g (approximately the weight of two coins) + 360° omnidirectional reception reduces drone weight by 18% and increases flight time, making wearable devices feel weightless.
Application Scenarios
Cross-border logistics: China-Europe train positioning terminals, shipping container trackers
Precision agriculture: Beidou autonomous driving for agricultural machinery, plant protection drone field patrols
Disaster prevention and monitoring: earthquake early warning stations, mountain displacement sensors
Smart cities: shared bike electronic fencing, smart light pole positioning
Consumer electronics: outdoor sports watches, pet anti-lost collars
FAQ
Q: How do I switch between the four operating systems? Is manual configuration required?
A: Fully automatic intelligent switching (Beidou > GPS > GLONASS > Galileo), no configuration required.
Q: Will the 11g antenna fall off due to vehicle vibration?
A: 3M VHB adhesive (tensile strength ≥ 1kg) is standard, and a magnetic mount (load capacity 1.2kg) is optional.
Q: Will 16V voltage damage the device?
A: A built-in overvoltage protection chip (threshold 18V ± 0.5V) eliminates concerns about truck battery fluctuations.
Q: Does 360° coverage include vertical coverage?
A: Horizontal omnidirectionality is indicated; vertical coverage is gain-dependent (recommended mounting angle ≥ 30°).
Q: How does interference suppression work in metallic environments?
A: The optional ferrite ring kit (ANT-FER103) suppresses motor interference by 15dB.
Q: Will the SMA connector rust in humid environments?
A: 50μ-inch gold plating and self-sealing structure pass a 96-hour salt spray test.
