GL4358H876
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 433/900/1180-1280/1560-1620/2400-2500/ 5150-5350/5728-5850 | ||
Gain (dBi) | 5±1/8±1/14±1/16±1 | ||
Polarization | 6*Vertical / 1*Vertical + Horizontal | ||
VSWR | ≤1.8 | ||
F/B Ratio | ≥15≥20/≥23 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||

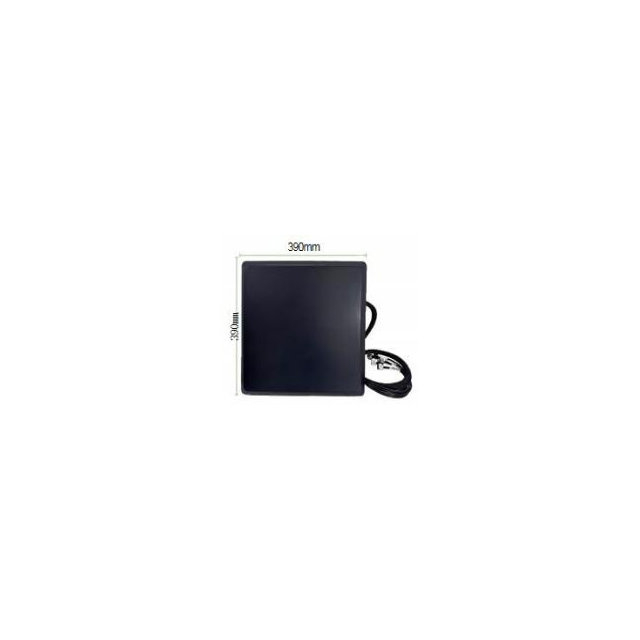

Dimensions (mm) | 390*390*50MM | ||
Antenna weight (Kg) | 1.1 | ||
Radome color | Black and white | ||
Input connector type | 8*N male | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Electrical Specifications | |||
Frequency Range (MHz) | 433/900/1180-1280/1560-1620/2400-2500/ 5150-5350/5728-5850 | ||
Gain (dBi) | 5±1/8±1/14±1/16±1 | ||
Polarization | 6*Vertical / 1*Vertical + Horizontal | ||
VSWR | ≤1.8 | ||
F/B Ratio | ≥15≥20/≥23 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | 390*390*50MM | ||
Antenna weight (Kg) | 1.1 | ||
Radome color | Black and white | ||
Input connector type | 8*N male | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
