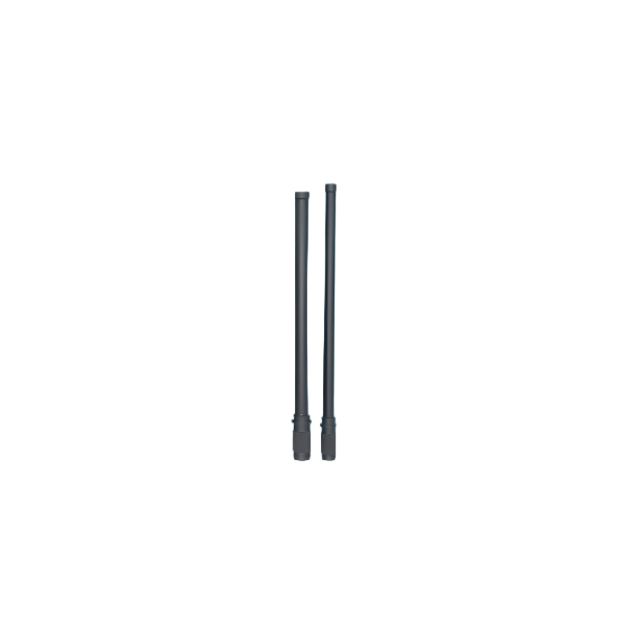

GL5200B10
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 5150-5350 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 9±3° | ||
Gain (dBi) | 10±1 | ||
VSWR | ≤1.5 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Ø25/32*600mm | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | black | ||

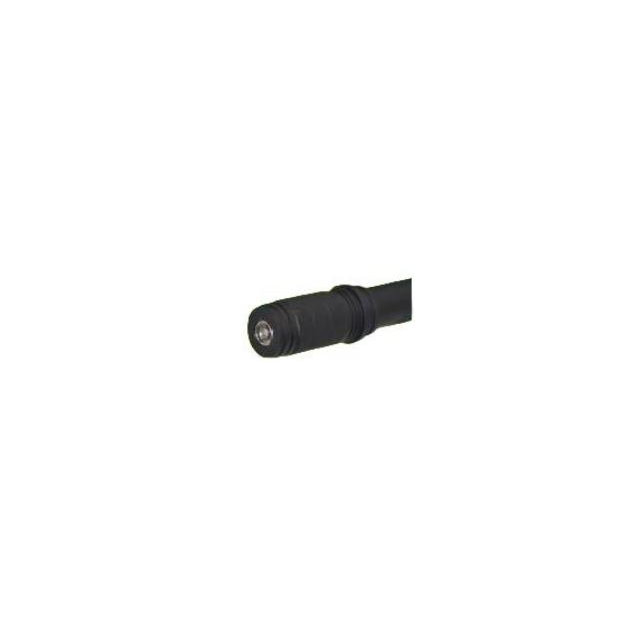

Input connector type | N male | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Electrical Specifications | |||
Frequency Range (MHz) | 5150-5350 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 9±3° | ||
Gain (dBi) | 10±1 | ||
VSWR | ≤1.5 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Ø25/32*600mm | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | black | ||
Input connector type | N male | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
