GL1558H812
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||||
Frequency Range (MHz) | 1560-1620 | 2400-2500 | 5725-5850 | |
Gain (dBi) | 8±1 | 12±1 | 12±1 | |
Polarization | 3*Vertical | |||
VSWR | ≤2.0 | |||
F/B Ratio | ≥20/≥23 | |||
Maximum input power (W) | 100 | |||
Impedance (Ω) | 50 | |||
Mechanical Specifications | ||||

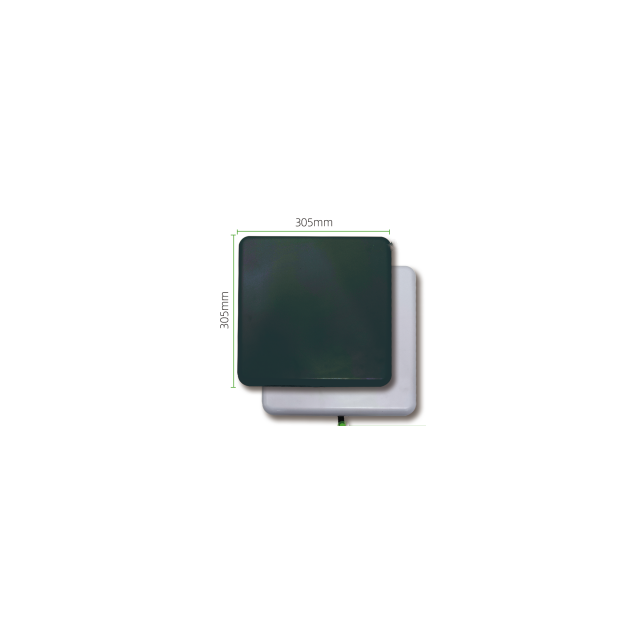

Dimensions (mm) | 305*305*25MM | |||
Antenna weight (Kg) | 1 | |||
Radome color | Black and white | |||
Input connector type | 3*N female | |||
Environmental indicators | ||||
Usage scenarios | Outdoor | |||
Operating temperature (℃) | -40 to +70 | |||
Humidity range (%) | 5 to 95 | |||
Electrical Specifications | ||||
Frequency Range (MHz) | 1560-1620 | 2400-2500 | 5725-5850 | |
Gain (dBi) | 8±1 | 12±1 | 12±1 | |
Polarization | 3*Vertical | |||
VSWR | ≤2.0 | |||
F/B Ratio | ≥20/≥23 | |||
Maximum input power (W) | 100 | |||
Impedance (Ω) | 50 | |||
Mechanical Specifications | ||||
Dimensions (mm) | 305*305*25MM | |||
Antenna weight (Kg) | 1 | |||
Radome color | Black and white | |||
Input connector type | 3*N female | |||
Environmental indicators | ||||
Usage scenarios | Outdoor | |||
Operating temperature (℃) | -40 to +70 | |||
Humidity range (%) | 5 to 95 | |||
