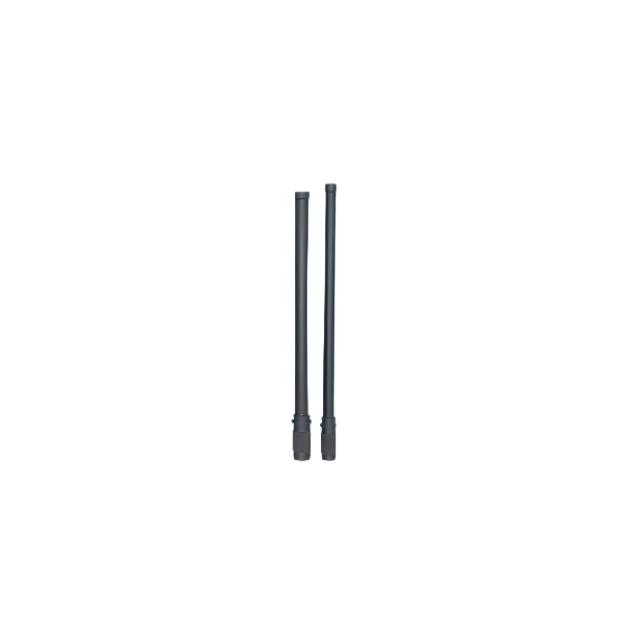

5.8GHz high Gain Outdoor Omnidirectional Anti-Jamming Antenna

Product Introduction

High Gain Omnidirectional Coverage: 10dBi high gain combined with a 360° horizontal beam significantly improves signal coverage distance and transmission stability, suitable for medium- to long-distance networking.

Strong Anti-interference and High Stability: Optimized for the 5.8GHz high-frequency band, effectively suppressing co-channel interference and ensuring smooth communication for Wi-Fi, image transmission, and other applications in complex environments.

Narrow Vertical Beam Enhanced Penetration: 9° vertical beamwidth concentrates energy and provides strong penetration, suitable for scenarios with many obstacles and between buildings.

Lightweight Outdoor Professional Design: Utilizes a fiberglass protective shell, weighing only 0.2kg, combining robustness and portability for easy installation and resistance to harsh outdoor environments.

Wide-Band High-Power Support: Covers the entire 5700-5900MHz frequency band, supporting 100W high-power input to meet the needs of high-density, high-bandwidth communication.

Application Scenarios

Outdoor long-range Wi-Fi coverage (corporate parks, rural broadband)

Wireless high-definition video surveillance and UAV image transmission system

Point-to-multipoint (PtMP) broadband access and backbone transmission

Industrial wireless communication and Internet of Things (IoT) data backhaul

Wireless network setup for temporary events and live sports broadcasts

FAQ

Q: What is the gain of this 5.8GHz antenna and what does it mean for range?

A: With a gain of 10dBi, it provides significantly extended range and stronger signal strength compared to standard omni-antennas, ideal for long-distance wireless links.

Q: Is this antenna suitable for outdoor WiFi hotspot deployment?

A: Absolutely. Its high gain, omnidirectional pattern, and rugged outdoor design make it perfect for creating wide-area outdoor WiFi coverage.

Q: How does the narrow vertical beamwidth benefit performance?

A: The 9° vertical beamwidth focuses signal energy, reducing interference from above and below, and improving performance in multi-story or dense environments.

Q: Can it be used for wireless... security camera systems?

A: Yes, it is an excellent choice for transmitting high-definition video from multiple outdoor security cameras back to a central receiver over long distances.

Q: What connector does it use and is it waterproof?

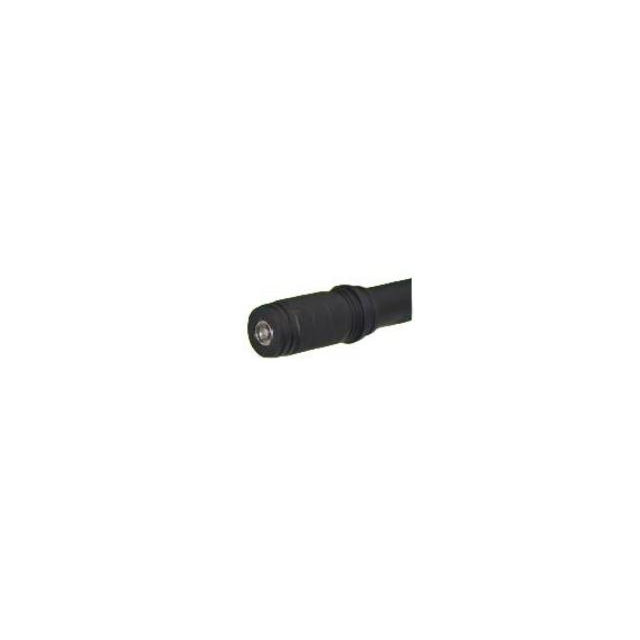

A: It uses a standard N male connector. The fiberglass radome provides environmental protection, but for permanent installation, using a weatherproof cable gland is recommended.

Q: What is the maximum wind speed it can withstand?

A: It is rated to withstand wind speeds up to 200 km/h, ensuring reliable operation in stormy conditions.
