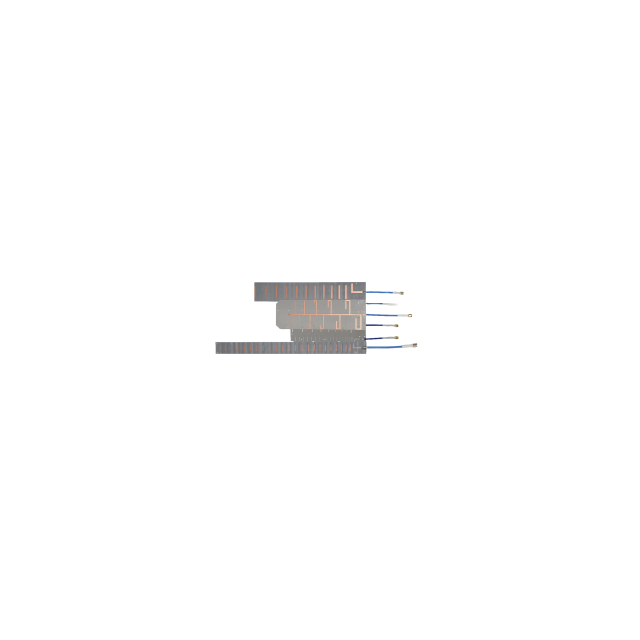

GL2400P15
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range | 2400-2500 | |
Gain (dBi) | 15±1 | |
VSWR | ≤1.5 | |
Polarization | vertical | |
Horizontal beam width(°) | 32±10 | |
Vertical beam width (°) | 32±5 | |
Maximum input power (W) | 100 | |
Impedance (Ω) | 50 | |
Mechanical Index | ||
Dimensions (mm) | 370*60*1.5mm | |
Input connector type | SMA male | |
Usage scenarios | Internal | |
Operating temperature (℃) | -40 ~ +85 | |
Humidity range (%) | 5~95 | |
Electrical Specifications | ||
Frequency Range | 2400-2500 | |
Gain (dBi) | 15±1 | |
VSWR | ≤1.5 | |
Polarization | vertical | |
Horizontal beam width(°) | 32±10 | |
Vertical beam width (°) | 32±5 | |
Maximum input power (W) | 100 | |
Impedance (Ω) | 50 | |
Mechanical Index | ||
Dimensions (mm) | 370*60*1.5mm | |
Input connector type | SMA male | |
Usage scenarios | Internal | |
Operating temperature (℃) | -40 ~ +85 | |
Humidity range (%) | 5~95 | |
