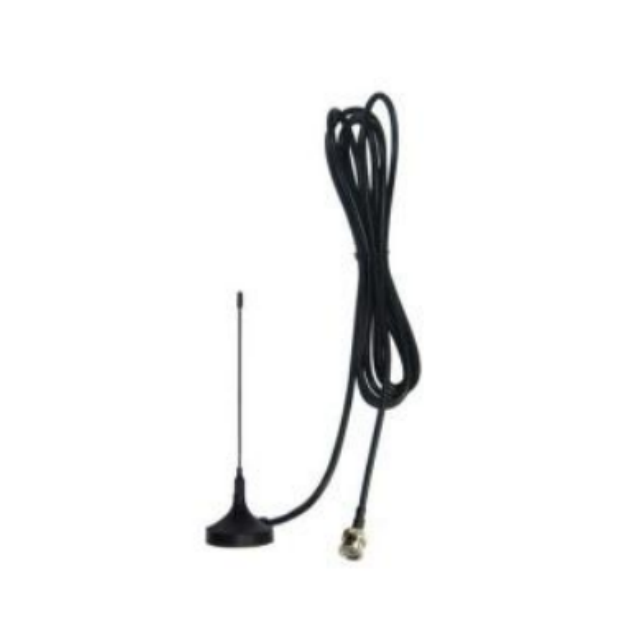

GL090-868
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range（MHz） | 868 |
Gain（dBi） | 5 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
Connector | BNC |
Size (mm) | φ45× 110 |
Cables | RG174 3m |
Color | Black |
Temperature (℃) | -30~60 |
Product Introduction
High Gain for Stronger Signals: With a gain of 5dBi, the GL090 - 868 significantly enhances signal strength at the 868MHz frequency, ideal for long - range communication in applications like smart agriculture or remote monitoring systems.
Vertical Polarization: The vertical polarization reduces interference from horizontally polarized signals, making it suitable for environments with multi - path reflections, such as urban areas or industrial sites.
Stable Electrical Performance: Featuring a VSWR of ≤2.0 and 50Ω impedance, the antenna ensures efficient power transfer and minimal signal loss, providing reliable connectivity for IoT devices and wireless networks.
Magnetic Mount for Easy Installation: The magnetic base allows quick attachment to metal surfaces (e.g., vehicle roofs, industrial equipment), enabling hassle - free setup without tools or additional hardware.
Durable and Environmentally Friendly: Compliant with ROHS standards, the antenna operates in temperatures from -30℃ to 60℃ and features a rugged design with a black, weather - resistant exterior, suitable for both indoor and outdoor use.
Application scenarios
Industrial IoT: Reliable connectivity for machinery monitoring in factories or warehouses.
Smart Agriculture: Supports wireless sensor networks in remote farming systems.
Vehicle Telematics: Enhances tracking and data transmission for fleet management.
Utility Metering: Ensures stable communication for smart meters in urban/rural areas.
Environmental Monitoring: Ideal for weather stations or pollution sensors in extreme climates.
FAQ
Q: What is the antenna’s polarization type?
A: Vertical polarization for optimized signal alignment.
Q: Can it handle high-power applications?
A: Yes, it supports up to 50W maximum power.
Q: What’s the operating temperature range?
A: -30°C to +60°C, suitable for most outdoor/industrial settings.
Q: Is the antenna waterproof?
A: While not explicitly rated, its rugged design withstands humidity (compatible with industrial environments).
Q: Does it work with LoRa devices?
A: Yes, optimized for 868MHz bands used in LoRa and LPWAN systems.
Q: What connector type is included?
A: BNC connector with a 3m RG174 cable.
Q: Can the magnet damage vehicle surfaces?
A: No, the magnet is strong but non-destructive for easy removal.
Q: Is this antenna ROHS certified?
A: Yes, compliant with ROHS environmental standards.
