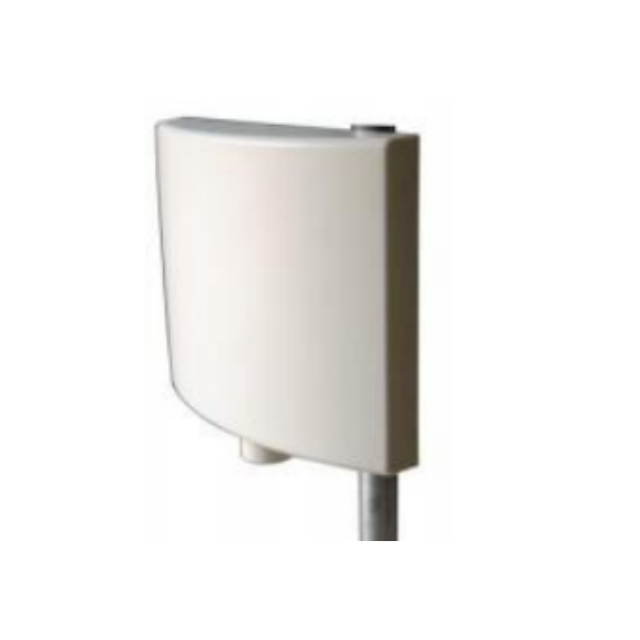

GL-DY800V7
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical index | |
Frequency Range-MHz | 824-896 |
V.S.W.R | ≤1.5 |
Gain-dBi | 6.7 |
Horizontal Beam width-° | 60 |
Vertical Beam width-° | 50 |
F/B Ratio-dB | ≥20dB |
Polarization | Vertical |
Input Impedance-Ω | 50 |
Max Power-W | 100 |
Lighting Protection | DC Ground |
Mechanical Index | |
Connector | N female |
Installation | Wall mounting or rack mounting |
Dimension | 250×220×60mm |
Weight | 0.7kg |
Product Introduction
High Gain & Precision Beamwidth
Delivers 6.7dBi gain with focused 60° horizontal and 50° vertical beamwidths, ensuring strong signal directionality and reduced interference.
Ultra-Low VSWR for Optimal Efficiency
VSWR ≤1.5 maximizes power transfer and minimizes signal loss, ideal for high-performance communication systems.
Rugged Design for Harsh Environments
Built for industrial use with DC Ground lightning protection and wall/rack mounting options. Withstands demanding outdoor conditions.
Supports High-Power Applications
Handles up to 100W max power, perfect for cellular networks, public safety, and long-range communication systems.
Broad Frequency Compatibility
Covers 824-896MHz, suitable for GSM, LTE, and industrial IoT applications across multiple regions.
Application Scenarios

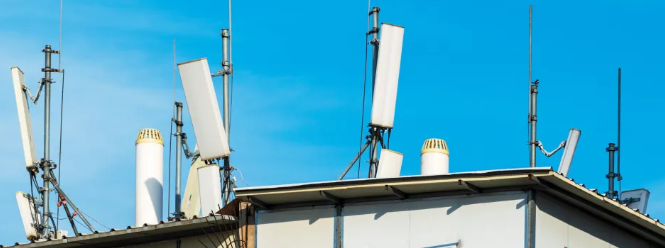

Cellular Network Expansion: Enhance signal coverage for mobile base stations in urban or rural areas.
Public Safety Systems: Deploy in emergency communication towers for police/fire departments.
Industrial IoT Hubs: Connect sensors and devices in factories or mining operations.
Remote Telemetry: Monitor infrastructure in oil/gas pipelines or wind farms.
Transportation Networks: Install on railway or highway communication towers.
FAQ
Q:Is this antenna waterproof?
A:While not fully waterproof, it’s designed for outdoor durability. For extreme conditions, add a protective radome .
Q:What connector type does it use?
A:Equipped with an N female connector for secure, high-frequency connections.
Q:Can it be mounted on non-metal surfaces?
A:, it supports wall or rack mounting on various surfaces using brackets (included).
Q:Is it compatible with 900MHz systems?
A:No, it’s optimized for 824-896MHz. Check our 900MHz models for other frequencies.
Q:What’s the antenna’s weight?
A:Lightweight at 0.7kg, ensuring easy installation and minimal structural load.
Q:Does it require grounding?
A:Yes, the DC Ground lightning protection feature requires proper grounding for safety.
Q:What’s the F/B Ratio?
A:The front-to-back ratio is ≥20dB, reducing interference from rear signals.
Q:Is it ROHS compliant?
A:Yes, this antenna meets ROHS environmental standards.
