GLZ03-868
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |
Frequency： | 868±10MHZ |
Center frequency： | 868MHZ |
GAIN： | 3.5dbi |
VSWR： | <1.5 |
Polarization direction： | Vertical polarization |
impedance： | 50Ω |
Radiation direction： | omnidirectional antenna |
Power Capacity： | 100W |

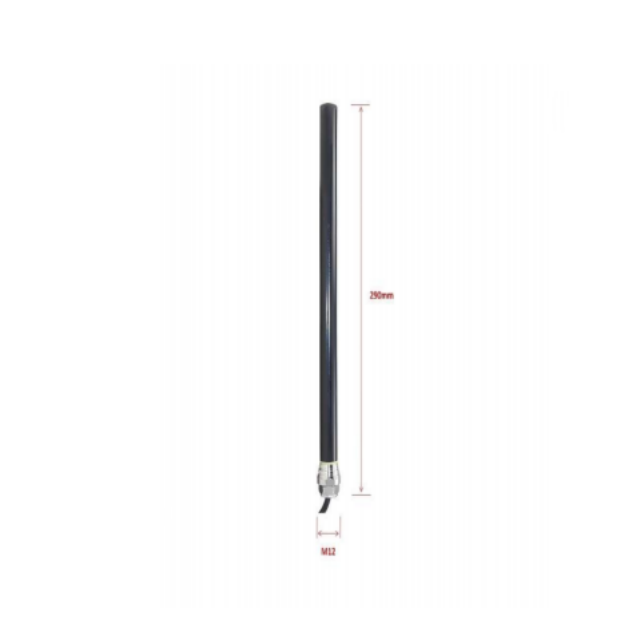

Length of antenna： | 290mm |
color： | Black |
diameter： | Φ12mm |
material： | PC/ABS |
Inter face method： | SMA-J |
operation temperature： | -40℃--﹢85℃ |
storage temperature： | -40℃--﹢85℃ |
Product Introduction
High Gain & Stable Performance
With a gain of 3.5dBi and stable efficiency across 858–878MHz, this antenna ensures reliable signal strength and coverage. Ideal for applications requiring consistent data transmission.
Omnidirectional Radiation Pattern
The antenna provides 360° coverage, making it perfect for environments where signals come from multiple directions. No need for precise alignment—just install and use.
Robust Construction & Wide Temperature Tolerance
Made from durable PC/ABS material and operating in temperatures from -40℃ to +85℃, this antenna is built for harsh industrial or outdoor settings.
High Power Handling (100W) & Low VSWR
Supports up to 100W power with a VSWR below 1.5, ensuring minimal signal loss and high reliability in high-power communication systems.
Precision-Tuned for 868MHz Band
Centered at 868MHz with a ±10MHz bandwidth, this antenna is optimized for regional ISM band applications, including IoT, smart metering, and wireless sensor networks.
IoT and Smart Devices: Used in smart home systems, environmental sensors, and asset tracking devices.

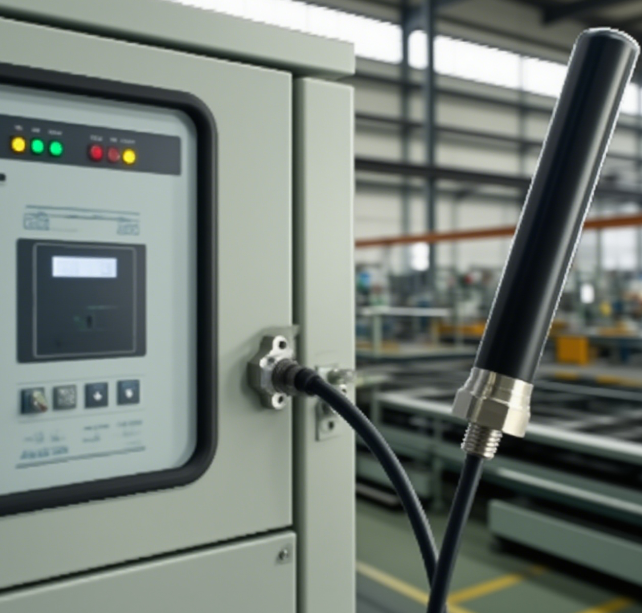

Industrial Automation: Deployed in wireless control systems, machinery monitoring, and PLC communication.
RFID and Access Control: Ideal for RFID readers, gate entry systems, and inventory management.
Wireless Communication Modules: Compatible with LoRa, Zigbee, and other 868MHz-based protocols.
Outdoor and Remote Applications: Suitable for weather stations, agricultural monitoring, and remote telemetry due to its wide temperature range.
FAQ
Q：What is the operating frequency of this antenna?
A:The antenna operates at 868MHz ±10MHz, making it ideal for ISM band applications.
Q：What is the gain of the GLZ03-868 antenna?
A:The gain is 3.5dBi, providing enhanced signal coverage without requiring additional amplifiers.
Q：Is this antenna suitable for outdoor use?
A:Yes, it features a wide operating temperature range (-40℃ to +85℃) and durable housing, making it suitable for outdoor and industrial environments.

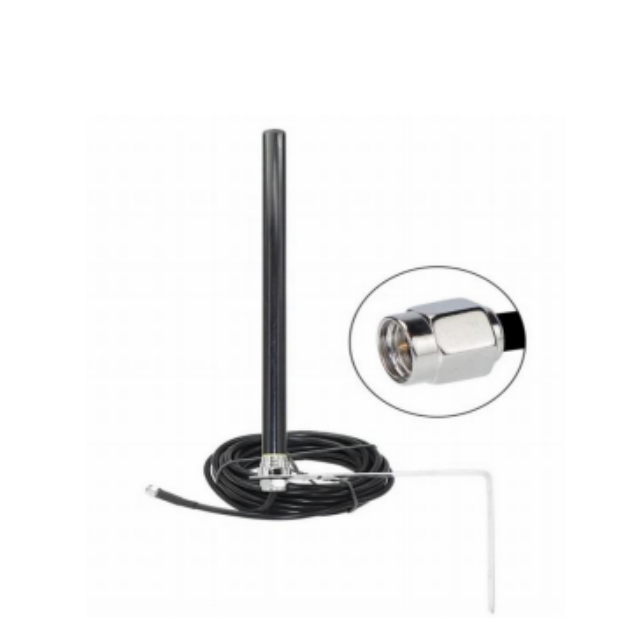

Q：What connector does this antenna use?
A:It uses an SMA-J (male) connector, commonly used in wireless modules and routers.
Q：Can this antenna handle high power?
A:Yes, it supports up to 100W power capacity, ideal for long-range and high-power communication systems.
Q：Is the antenna omnidirectional?
A:Yes, it radiates signals in all directions horizontally, ensuring broad coverage.
