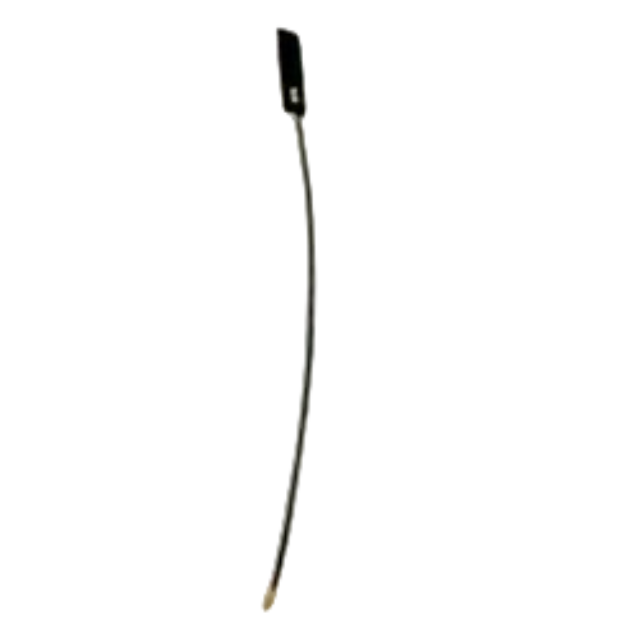

868MHZ patch antenna | |
GL160-868 | |
Passive Electrical Specifications | |
Frequency-MHz | 868 |
VSWR | ≤2 |
Normal Impedance-Ω | 50 |
Gain-dBi | ≤0 dBi |
Polarization | Liner |
Mechanical Index | |
Cable | RF1.13 |
Cable Length | 150mm |
Connector | IPEX |
Antenna Dimension-mm | 29mm × 8mm |
Radome Color | Black |
Temperature-℃ | -40～＋85 |
1. Ultra-Compact Design, Space-Saving Devices
Measuring only 29mm x 8mm, the antenna's ultra-thin patch design allows for easy integration into space-constrained IoT devices, portable terminals, and various embedded wireless modules, making it an ideal choice for miniaturized device designs.
2. Plug-and-Play, Easy Installation
Comes standard with a 150mm-long RF1.13 cable and a standard IPEX connector, it quickly connects to mainstream wireless communication modules (such as LoRa and Sigfox) on the market, enabling solder-free installation and significantly simplifying the production and assembly process.
3. Stable Performance, Efficient Transmission
Although its gain is approximately 0dBi in the 868MHz band, its voltage standing wave ratio (VSWR) is ≤2.0, ensuring efficient energy radiation and minimizing signal reflections, providing a stable and reliable connection for wireless data transmission.
4. Wide Operating Temperature Range, Suitable for Harsh Environments
With an operating temperature range of -40°C to +85°C, it maintains stable electrical performance in both harsh outdoor environments and high-temperature conditions within equipment, meeting the demands of demanding industrial applications.
5. Flexible and Detachable for Easy Maintenance
The antenna features a detachable design. If the antenna or cable is damaged during transportation or use, it can be easily replaced without returning to the factory for repair, effectively reducing the cost and difficulty of future maintenance.
Application Scenario
Internet of Things (IoT) Devices: Built into LoRaWAN and Sigfox end nodes for remote data collection and transmission.
Smart Meters: Integrated into smart water, electricity, and gas meters for remote automatic meter reading.
Wireless Sensor Networks: Used for wireless data backhaul in agricultural sensing, environmental monitoring, industrial sensing, and other scenarios.
Asset Trackers: Used for miniaturized pet, cargo, or asset tracking tags.
Portable Medical Devices: Provides communication connectivity in small, portable medical devices requiring wireless data transmission.
FAQ
Q: What is the operating frequency of this antenna?
A: It is designed for the 868MHz ISM band and is compatible with IoT communication standards such as LoRa and Sigfox, which are widely used in Europe and other regions.
Q: What is the antenna's gain?
A: The antenna has a gain of approximately 0dBi and is suitable for compact devices requiring omnidirectional or short-range communication.
Q: What type of connector does it use?
A: It uses the IPEX connector (also known as IPX or UMCC connector), which is very common in small wireless modules.
Q: What is the cable length?
A: The product comes with a 150mm long RF1.13 coaxial cable, allowing for flexible routing within the device.
Q: Is this antenna suitable for outdoor use?
A: Although the antenna itself is not sealed, it has a wide operating temperature range (-40°C to +85°C) and can be integrated into outdoor devices with protective housings.
Q: What is its maximum power?
A: As a typical passive patch antenna, it is suitable for low-power IoT applications (typically ≤2W).
