GLF868-5
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

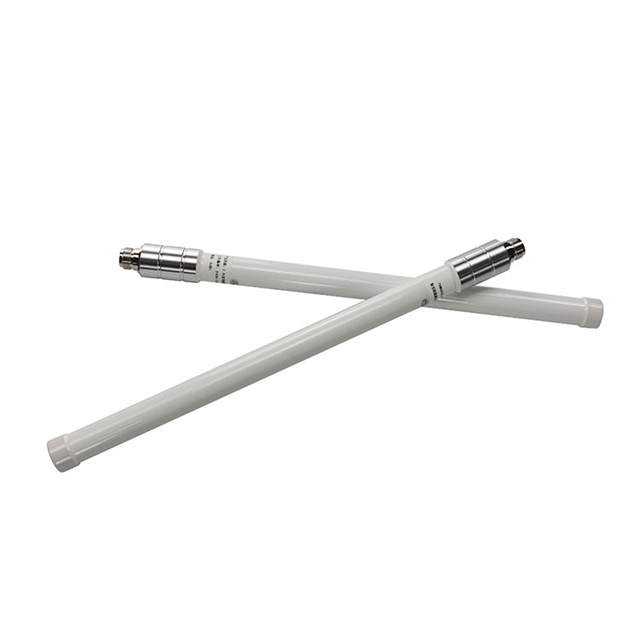

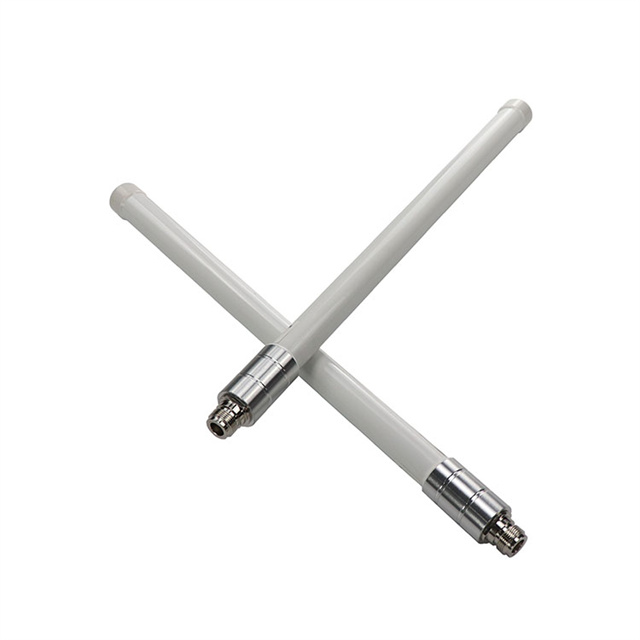

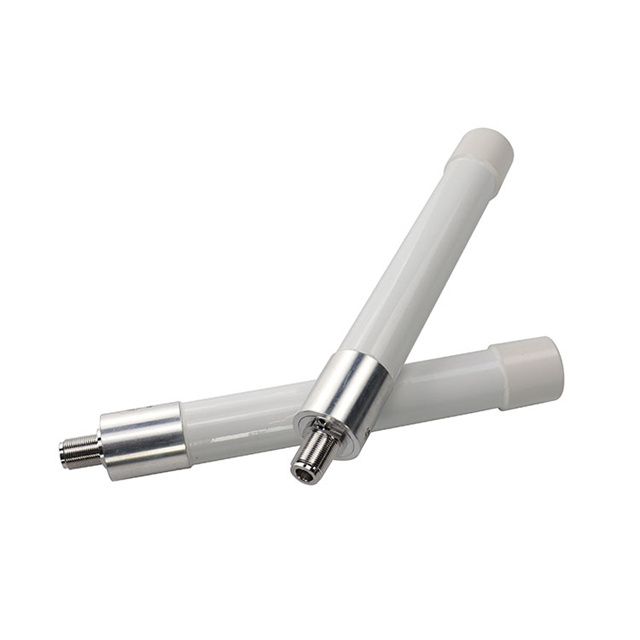

868MHz Omni Antenna | |
GLF868-5 | |
Electrical Index | |
Frequency-MHz | 850-880 |
Gain-dBi | 5.0 |
VSWR | <1.5 |
Normal Impedance-Ω | 50 |
Polarization | Liner |
Max Power-W | 100 |
Lighting protection | DC Ground |
Mechanical Index | |
Cable Length | ---- |
Connector | N female |
Antenna Dimension-mm | 360*80*60 |
Installation Way | Magnet |
Material | PVC |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
1. Optimized 868MHz Frequency Coverage
Designed to operate within 850–880MHz, this antenna ensures stable signal transmission and reception for 868MHz wireless communication systems.
2. 5dBi Omnidirectional Radiation Pattern
The 5dBi gain omnidirectional design provides uniform signal coverage in all horizontal directions, making it suitable for wide-area outdoor deployments.
3. Magnetic Mount for Flexible Installation
Equipped with a magnetic base, the antenna can be easily installed on metal surfaces, enabling quick deployment without permanent mounting hardware.
Application scenarios
Wireless communication systems operating at 868MHz
Outdoor signal coverage for control and monitoring equipment
Temporary or mobile installations requiring magnetic mounting
Industrial wireless devices using sub-GHz frequencies
Outdoor RF systems needing stable omnidirectional coverage
Q: What frequency range does this antenna support?
A: The antenna operates within 850–880MHz, optimized for 868MHz applications.
Q: Is this antenna omnidirectional or directional?
A: It is an omnidirectional antenna, providing 360-degree horizontal coverage.
Q: What is the gain of this antenna?
A: The antenna offers a 5dBi gain, balancing coverage range and signal stability.
Q: How is the antenna installed?
A: It features a magnetic mount, allowing easy installation on metal surfaces without drilling.
Q: Is this antenna suitable for outdoor use?
A: Yes, the antenna is designed for outdoor environments and operates from -40°C to +85°C with humidity resistance.
Q: What connector does the antenna use?
A: The antenna is equipped with an N female connector.
