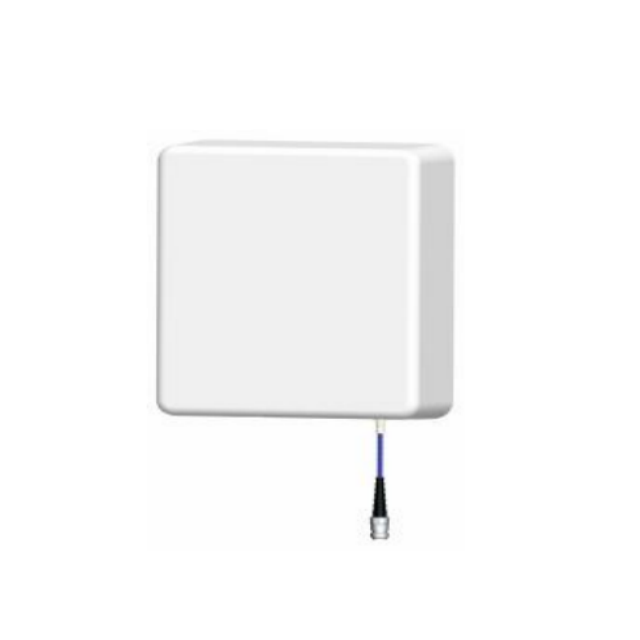

GL0642
Asialeren
8517710000
10
Accepted
10000/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range (MHz) | 617～698 | 698～960 | 1695～2700 | 3300～4200 |
Polarization | Vertical | |||
Gain (dBi) | 6 | 7 | 8 | 9 |
Horizontal beam width (°) | 90 | 80 | 75 | 55 |
Typical Vertical beam width (°) | 75 | 80 | 70 | 50 |
Front-to-back ratio (dB,avg.) | 14 | 16 | 25 | 20 |
Impedance (Ω) | 50 | |||
VSWR | ≤ 1.8 | |||
Intermodulation IM3 (2×43dBm carrier) | -153dBc | -153dBc | -153dBc | -153dBc |
Maximum power (W) | 50 | |||
Lighting protection | DC Ground | |||
Mechanical specifications | ||||
Connector | 4.3-10 Female or N Female | |||
Exposed cable size (cm) | 30 | |||
Connector position | Bottom | |||
Antenna size (mm) | 306*250*86 | |||
Packing size (mm) | 455*260*113 | |||
Weight (kg) | ≤ 1.5 | |||
Radome material | ABS | |||
Radome color | White (RAL 9003) | |||
Operating temperature (℃) | -40～60 | |||
Application | Outdoor | |||
Mechanical tilt (°) | Adjusting Elevation 0～20/Adjusting Turn ±45 | |||
Rated wind velocity (m/s) | 40 | |||
Suitable pole diameter (mm) | Φ35~Φ125 | |||
Mounting kit | JM-VB8 | |||
Product Introduction
1. Ultra-Wideband Frequency Coverage
Supporting 617–698MHz, 698–960MHz, 1695–2700MHz, and 3300–4200MHz, this antenna enables multi-network operation with a single ceiling-mounted solution.
2. High-Gain Omnidirectional Performance
With gain levels up to 9dBi depending on frequency band, the antenna delivers strong and uniform 360° horizontal coverage for wireless communication systems.
3. Adjustable Mechanical Tilt and Direction
The antenna supports 0–20° elevation adjustment and ±45° turning, allowing precise coverage optimization in complex installation environments.
4. Reliable Electrical and Safety Design
Featuring VSWR ≤1.8, 50Ω impedance, and DC grounding for lightning protection, the antenna ensures stable and safe operation in demanding environments.
5. Durable Construction for Long-Term Use
The ABS radome, wide operating temperature range (-40°C to +60°C), and wind resistance up to 40 m/s make it suitable for both indoor and outdoor installations
Application Scenarios
Indoor distributed antenna systems (DAS)
Wireless signal coverage in large buildings
Ceiling-mounted antennas for commercial facilities
Indoor–outdoor transition coverage areas
Wideband wireless communication environments
FAQ
Q: What frequency range does this ceiling antenna support?
A: It supports 617–4200MHz, covering multiple low, mid, and high frequency bands
Q: Is this antenna omnidirectional?
A: Yes, it provides omnidirectional horizontal radiation for uniform coverage.
Q: Does the antenna support adjustable tilt?
A: Yes, it supports 0–20° elevation adjustment and ±45° directional adjustment.
Q: What is the maximum gain of this antenna?
A: The gain can reach up to 9dBi, depending on the operating frequency band.
Q: Is the antenna suitable for outdoor use?
A: Yes, it is designed for outdoor applications and withstands harsh environmental conditions.
Q: What connector options are available?
A: The antenna supports 4.3-10 Female or N Female connectors
