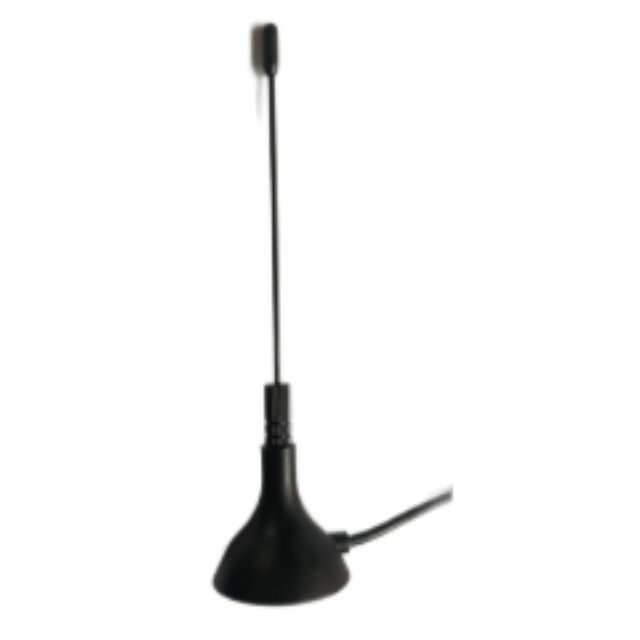

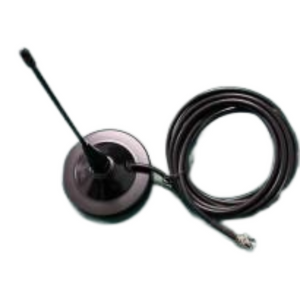

868MHz Magnet Antenna | |
GL8681 | |
Electrical Index | |
Frequency-MHz | 863-870 |
Gain-dBi | 3 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Liner |
Max Power-W | 50 |
Lighting protection | DC Ground |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | SMA male |
Antenna Dimension-mm | 31*91 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Targeted Frequency Coverage: Operates in the 863-870MHz band, optimized for European ISM applications to ensure compliance with regional frequency regulations.
Magnet1ic Mount Convenience: The magnetic base enables tool-free installation on metal surfaces (e.g., vehicle roofs, industrial equipment), supporting quick deployment in mobile or temporary setups.
Stable1 Signal Performance: With a 3dBi gain and VSWR < 2.0, it delivers reliable signal strength while minimizing interference, suitable for low-power wide-area network (LPWAN) applications.
Compac1t and Lightweight: At 31*91mm, the antenna fits space-constrained devices like IoT sensors or portable trackers, ensuring easy integration without compromising performance.
Enviro1nmental Resilience: RoHS compliant and rated for -40℃ to +85℃ operation with 5-95% humidity resistance, it withstands harsh outdoor and industrial environments.
Application scenarios

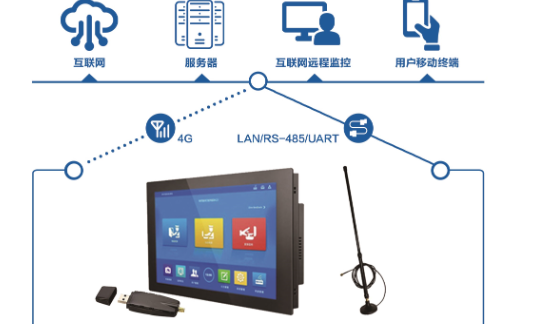

Industrial IoT: Deploy in factories or warehouses for machine-to-machine communication.
Smart Metering: Monitor utility meters in urban or remote areas.
Vehicle Tracking: Attach to trucks or fleet vehicles for GPS/data transmission.
Agriculture Sensors: Use in outdoor farming systems for soil or weather monitoring.
Emergency Communication: Rapid deployment for disaster recovery networks.
FAQ
Q:Is this antenna waterproof?
A:While not fully waterproof, it’s designed to withstand humidity (5%-95%) and harsh weather.
Q:What devices is it compatible with?
A:Compatible with any 868MHz, 50Ω system (e.g., LoRa, Sigfox, IoT gateways).
Q:Can I use it on non-metal surfaces?
A:The magnet requires metal for adhesion. For non-metal surfaces, use adhesive mounts (not included).
Q:Does it support higher frequencies like 915MHz?
A:No, it’s optimized for 863-870MHz. Check our 915MHz models for other regions.
Q:How durable is the magnet base?
A:The magnet holds firmly even under vibrations (tested at 10-55Hz for 2 hours).
Q:What’s the cable length?
A:Includes a 3-meter RG174 coaxial cable for flexible placement.
Q:Is lightning protection active without grounding?
A:No, the DC Ground feature requires proper grounding for effective protection.
Q:Is it ROHS certified?
A:Yes, this antenna meets ROHS environmental standards.
