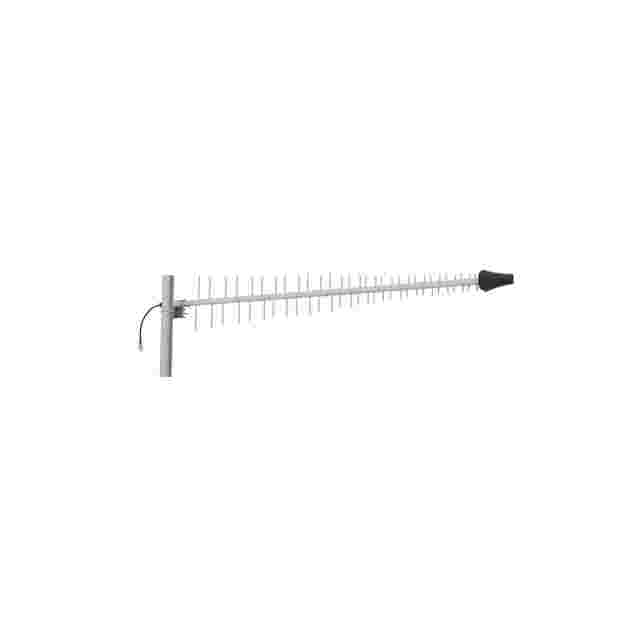

Dimension 1240x220x55mm Yagi Antenna

Model:
GL-BV1109
Brand:
GLOBAL
Code:
8517710000
Capacity:
1000PC/Day
MOQ:
10pc
OEM&ODM:
Accepted

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Introduction

Frequency Range 698-960/1710-2700/3300-3600/4800-5000MHz VSWR ≤3 Impedance 50 Ω Gain 12-15dBi Polarization Vertical or Horizontal Beam Width H(half-power) 50±8/45±8/35±5/28±3° Beam Width V(half-power) 40±5/35±5/25±3/20±3° Front to Back Ratio ≥21dB Lightning Protection DC Ground Max.Power 100w Connector SMA-Male Dimension 1240x220x55mm Weight 1.4Kg Rated Wind Speed 150km/h Radome Material Aluminium Cable 300mm Diameter of installation pole Φ30-53mm
