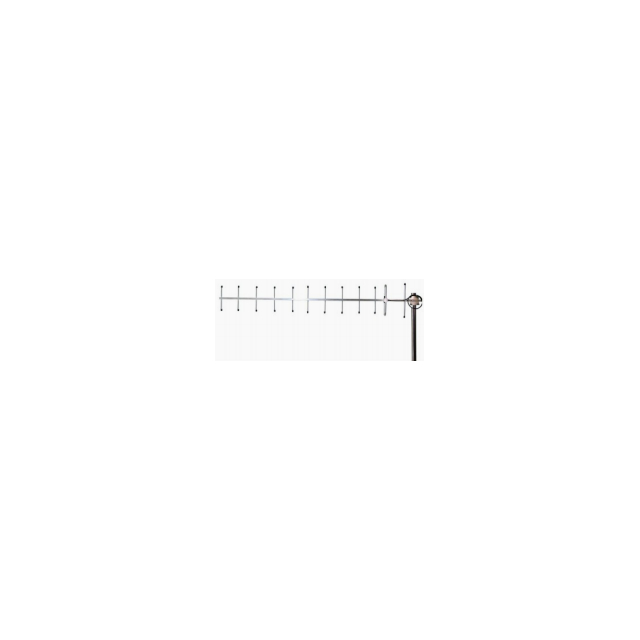

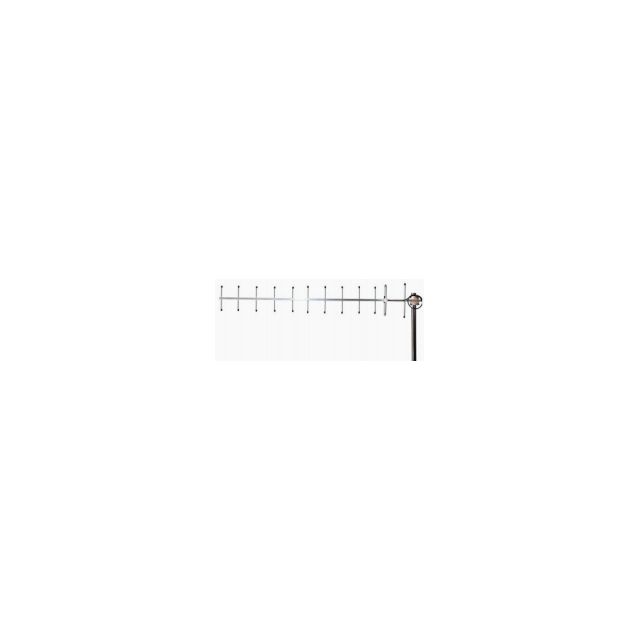

900mm 13dBi Gain 1060-1200MHz N Female Connector Yagi Antenna

PN

GL1200Y12

Frequency(Mhz)

1060-1200

Bandwidth(MHz)

140

Gain(dBi)

13

Vertical Beamwidth(°)

36

Horizontal Beamwidth(°)

32

F/B Ratio(dB)

≥18

VSWR

≤1.5

Nominal Impedance(Ω)

50

Polarization

Vertical or Horizontal

Maximum Power(W)

100

Dimensions(m)

0.9

Weight(kg)

0.6

Connector

N Female or Customization

Rated Wind Velocity(m/s)

60

Mounting Mast Diameter(mm)

φ30-50
