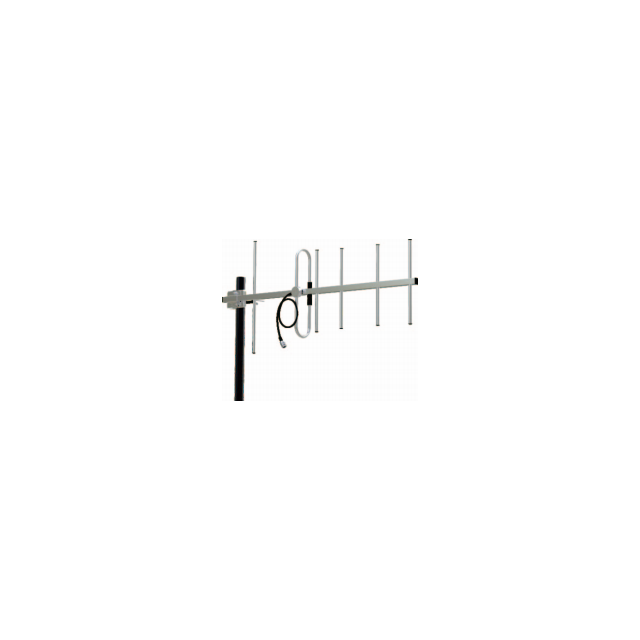

GL-BV0701
GLOBAL
8517710000
10PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range | 430-470MHz |
No.of Elements | 6 |
VSWR | ≤1.5 |
Impedance | 50 Ω |
Gain | 9±1dBi |
Polarization | Vertical or Horizontal |
Beam Width H(half-power) | 74±5° |
Beam Width V(half-power) | 60±2° |
Electrical Downtilt | 0 |
Front to Back Ratio | ≥11 |
Max.Power | 100w |
Connector | N-Female |
Dimension | 750x390x75mm |
Weight | 0.6Kg |
Rated Wind Speed | 100km/h |
Radome Material | Aluminium |
Diameter of installation pole | Φ30-Φ53mm |
Frequency Range | 430-470MHz |
No.of Elements | 6 |
VSWR | ≤1.5 |
Impedance | 50 Ω |
Gain | 9±1dBi |
Polarization | Vertical or Horizontal |
Beam Width H(half-power) | 74±5° |
Beam Width V(half-power) | 60±2° |
Electrical Downtilt | 0 |
Front to Back Ratio | ≥11 |
Max.Power | 100w |
Connector | N-Female |
Dimension | 750x390x75mm |
Weight | 0.6Kg |
Rated Wind Speed | 100km/h |
Radome Material | Aluminium |
Diameter of installation pole | Φ30-Φ53mm |
