GL-DY230Z5
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

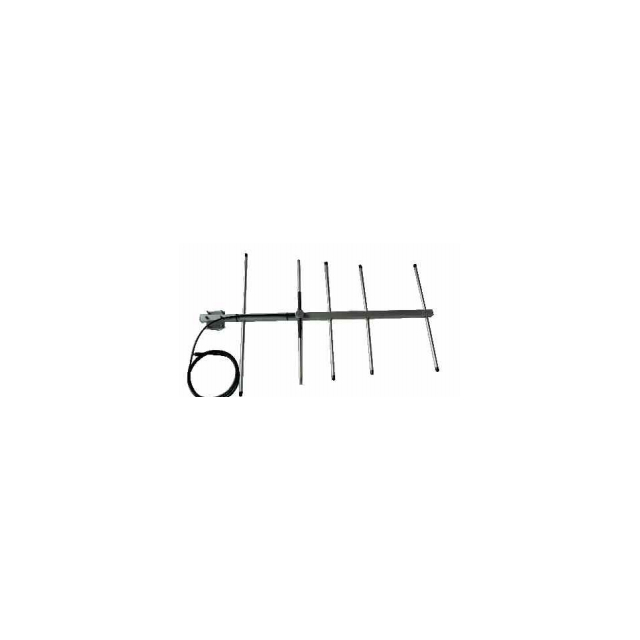

Yagi Antennas-5 elements | |
GL-DY230Z5 | |
Electrical Index | |
Frequency-MHz | 223-235 |
Bandwidth-MHz | 12 |
Gain-dBi | 8 |
Vertical Beamwidth-° | 58 |
Horizontal Beamwidth-° | 75 |
F/B Ratio-dB | 14 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 50 |
Length-m | 1.0 |
Weight-kg | 1.3 |
Rated Wind Velocity-m/s | 60 |
Connector | SMA male |
