GL-DY230E
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

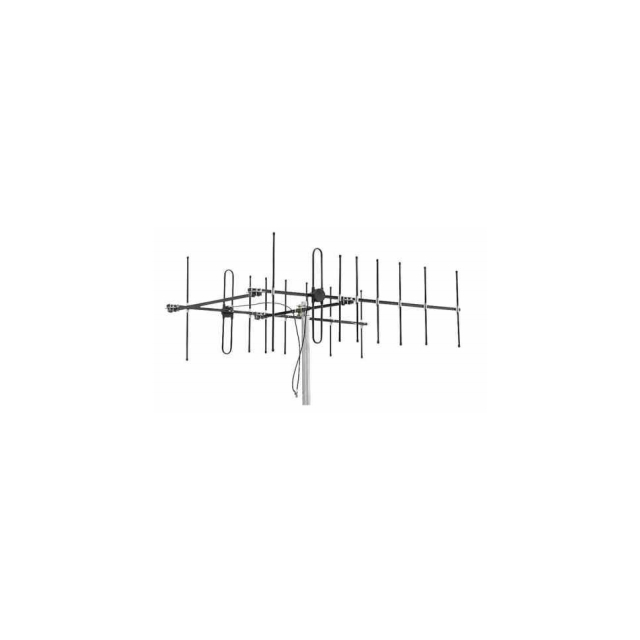

Yagi Antennas-2 rows 8 elements | |
GL-DY230E | |
Electrical Index | |
Frequency-MHz | 220-290 |
Bandwidth-MHz | 16 |
Gain-dBi | 14 |
Vertical Beamwidth-° | 40 |
Horizontal Beamwidth-° | 27 |
F/B Ratio-dB | 18 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 100 |
Length-m | 1.5 |
Weight-kg | 6.0 |
Rated Wind Velocity-m/s | 60 |
Connector | N female or customization |
