Shark Fin Antenna Full Analysis: From Design Principles to Buying Guidelines

I. Definition and Evolution

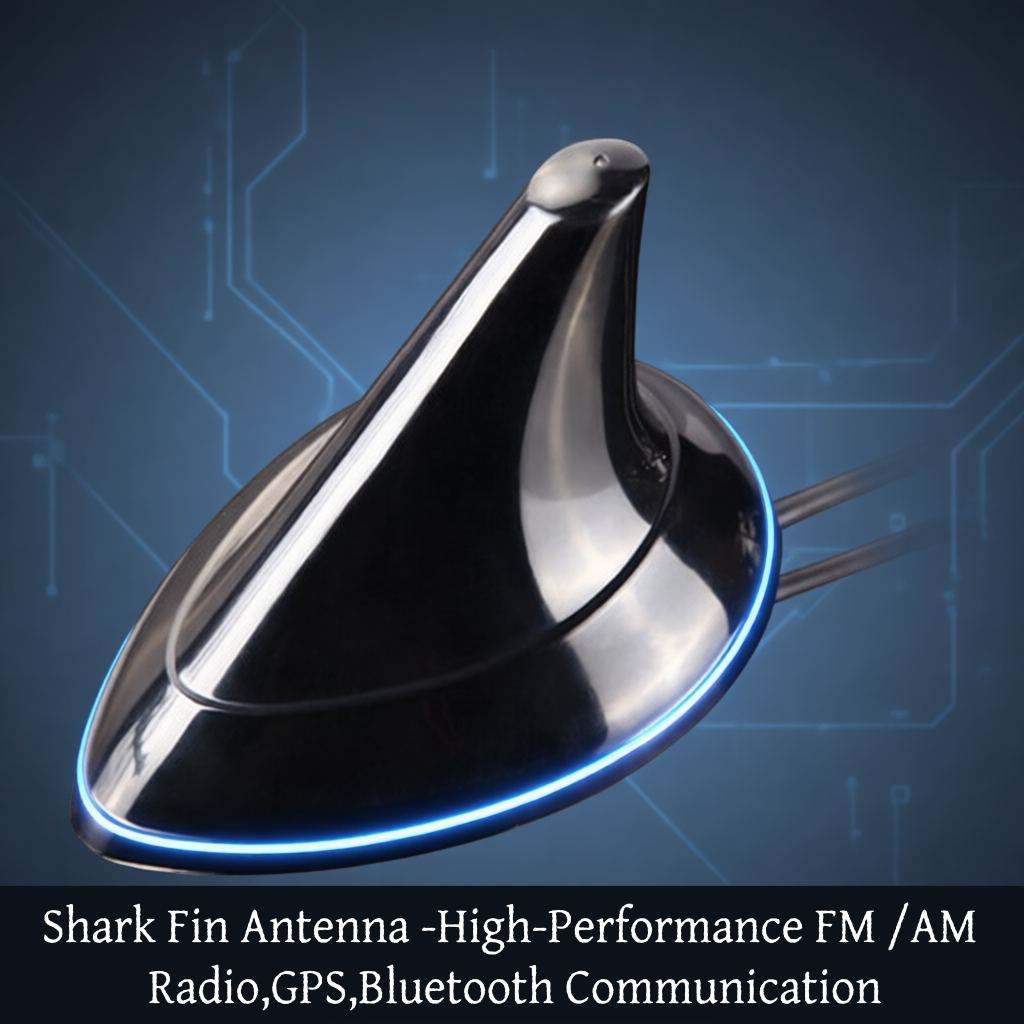

The shark fin antenna is an integrated vehicle antenna pioneered by BMW in mass-produced cars in the early 21st century, named after its shark dorsal fin-like shape. Its core innovation lies in the integration of FM/AM radio, GPS positioning, Bluetooth communication, 4G/5G vehicle to everything and even V2X intelligent transportation modules into a low wind resistance housing, replacing the traditional multi-antenna discrete layout.

The name "Shark Fin" is a vivid interpretation of its two core characteristics: one is its unique hydrodynamic appearance, which is similar to the dorsal fin exposed to the surface of the shark when swimming in the water, which is round and smooth, which can effectively break the wind and guide the flow; the other is its functional connotation, just as the shark dorsal fin is the key organ for maintaining balance and efficient navigation in the ocean, the shark fin antenna is also the communication center for modern vehicles to maintain stable connection and accurate navigation in the complex electromagnetic "ocean".

When the BMW E39 5 series was first applied in 1993, it was mainly used to enhance mobile phone signals. Later, due to the streamlined design, it can reduce high-speed wind noise by 30%, reduce fuel consumption by 5%, and integrate the characteristics of multi-band modules, quickly becoming the standard for mid-to-high-end models. According to 2025 data, more than 70% of new cars worldwide use shark fin design, and GPS/GLONASS/Galileo multi-mode antennas have become the standard for mainstream models around the world.

II.Performance advantages: Why is it better than traditional antennas?

1. Signal reception capability

●Multi-band integration: Built-in LDS laser direct molding circuit, supports AM/FM, GPS/GLONASS/Galileo, 4G/5G, V2X and other multi-band signal simultaneous reception. The actual measurement shows that in weak signal scenarios such as overpasses and tunnel entrances, the shark fin reception sensitivity is 40% higher than that of traditional whip antennas, the navigation and positioning accuracy is 3 meters, and the disconnection rate is reduced by 60%.

●Anti-jamming design: Through grounding optimization and electromagnetic shielding technology, urban electromagnetic pollution interference is reduced, and the clarity of voice calls is increased by 50% when driving at high speed, avoiding signal fluctuations caused by traditional antennas due to body vibration.

● Antistatic function: The top tip design can guide the static discharge of the body, avoid the static spark of the door in winter, and reduce the safety hazard of scenes such as gas stations.

2. Aerodynamics and durability

● Low wind resistance design: streamlined fins are optimized by 3D hydrodynamics, the Cd increment is controlled within 0.003, the wind noise is reduced by 20% at 120 km/h, and the annual fuel saving is about 60 US dollars (calculated by 20,000 km).

● Anti-harsh environment: IP67 waterproof and dustproof design, combined with self-healing coating technology, can work for 10 years in salt spray environment without aging. If the Abracon shark fin antenna passes the extreme temperature test of -40 ° C to 85 ° C, it can still receive signals stably in hurricane weather.

3. Installation and maintenance

● Special car design: adapted to the original arc, double fixing with screws + 3M glue, no wiring required for installation, and replacement can be completed in 30 minutes. Rear market products need to pay attention to waterproof sealing to avoid circuit failure caused by rainwater infiltration.

● Maintenance costs: The integrated modular design makes maintenance costs 20% higher than traditional antennas, but it has a low failure rate and a service life of 8-10 years.

III. Application scenarios: from automobiles to smart ecosystems

1. Automotive sector

● Passenger cars have become standard in more than 90% of new cars, such as BMW iX, Mercedes-Benz EQE, and Tesla Model 3, which all integrate 5G-V2X modules to support real-time traffic warning, automatic parking, and other intelligent functions.

● Commercial vehicles: European long-distance freight fleets use shark fin antennas to enable real-time vehicle tracking, cargo monitoring, and fleet collaboration, enhancing transportation efficiency and safety.

● Special vehicles: American ambulances and German fire engines rely on their stable signals to achieve cross-regional emergency dispatch, and Colorado car owners have been rescued by successfully sending a distress signal through a shark fin antenna during a snowstorm.

2. Extend the application

● Vessels: Caribbean yachts use corrosion-resistant shark fin antennas for maritime satellite communications to withstand high salt spray and strong sea winds.

● Architecture: Dubai's smart office cluster integrates shark fin antennas to build seamless indoor and outdoor 5G coverage, solving the problem of signal blind spots in super high-rise buildings.

IV. Comparison with traditional vehicle/external antennas

Buying Suggestions: How to Choose the Right Shark Fin Antenna?

1.Identify requirements

● Individual car owners: Preference is given to original certified accessories to ensure compatibility and signal stability. Such as shark fins adapted to Toyota RAV4 and Honda CR-V (popular models in North America/Europe), radio clarity and navigation response speed are significantly improved.

● Automakers: Focus on multi-band integration capabilities and international certification standards (e.g. CE, FCC, Galileo certification) to meet the needs of level 4 autonomous driving.

● Foreign trade procurement: need to match the international market demand, such as the Asia-Pacific region preference 5G-V2X function, Europe and the United States pay attention to cyber security certification (such as R155).

2. Key parameters

● Signal gain: Select a high-gain (≥ 3dBi) antenna to ensure the stability of weak signal scenarios.

● Waterproof grade: IP67 and above, suitable for severe weather such as rain, snow, and high humidity along the coast.

● Material technology: PC + ABS alloy shell impact resistance, LDS circuit etching accuracy of 0.1mm, to ensure the stability of signal transmission.

3. Pit Avoidance Guide

● Avoid imitation products: counterfeit products signal module is missing, such as only FM module, no GPS function, rainstorm days prone to leakage risk.

● Installation precautions: After installation, it is necessary to ensure that the built-in radio antenna functions well, the line connection is correct, and the waterproof seal is in place. It is recommended to operate it by a professional technician.

●Brand selection: Priority is given to international leading brands such as Harman, Amphenol, and Abracon, with a yield rate of over 98% and a complete global after-sales network.

Future trends: intelligence and integration

With the development of 6G and autonomous driving technology, shark fin antennas are evolving into "intelligent communication hubs":

●V2X integration: Supports vehicle-to-vehicle (V2V), vehicle-to-infrastructure (V2I) real-time communication, and implements collision warning and intersection traffic coordination functions in multiple European pilot countries.

● Millimeter-wave radar fusion: integrates UWB ultra-wideband technology to achieve centimeter-level positioning, providing core support for high-end autonomous driving of Tesla, BMW and other brands.

● Integration of vehicle and road clouds: In the intelligent transportation pilot area of Munich, Germany, the intelligent shark fin antenna has realized the humanistic function of traffic lights to extend the passage time for the elderly and the disabled, showing the temperature of technology.

conclusion

The shark fin antenna is not only the "signal guardian" of the roof, but also a key carrier for the intelligence of the car. From the original design of the BMW E39 to the intelligent end point integrated with 5G/V2X, it uses a streamlined design to reduce wind resistance, uses a multi-band module to improve communication capabilities, and uses anti-static functions to protect safety. Choosing a high-quality shark fin antenna is not only a choice of clear radio and stable navigation, but also a guarantee for safe travel. As the owner of the car in Colorado said: "It is not a decoration, it is hope in a blizzard, and it is the warmth that is not troubled by static electricity in winter."
