GL-DY070
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | ||
GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
Band Width | CF±5MHz | ||
Polarization | RHCP | ||
Gain | 2dBic(Zenith) | ||
V.S.W.R | <1.5 | ||
Impedance | 50Ω | ||
Axial Ratio | 3dB(max) | ||
LNA | Gain | 28±2dB | |
Noise Figure | <1.5 | ||
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
V.S.W.R | <2.0 | ||
Supply Voltage | 2.2~5V DC | ||
Current Consumption | 5~15mA | ||
GSM Antenna | Frequency Range | 824~960MHz/1710~1990MHz | |
V.S.W.R | <2.5 | ||
Polarization | Linear | ||
Gain | 2dBi | ||
Impedance | 50Ω | ||
FM/AM Antenna | Frequency Range | 520~1629KHz/76~108MHz | |
V.S.W.R | <2.5 | ||
Polarization | Linear | ||
Gain | 20/12dBi | ||
Impedance | 50Ω | ||
Supply Voltage | 12V DC | ||
Environmental | Operating Temperature | -40ºC~+85ºC | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP65~IP66 (exclude cable outlet) | ||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
Environmentally Friendly | ROHS Compliant | ||
Product Introduction

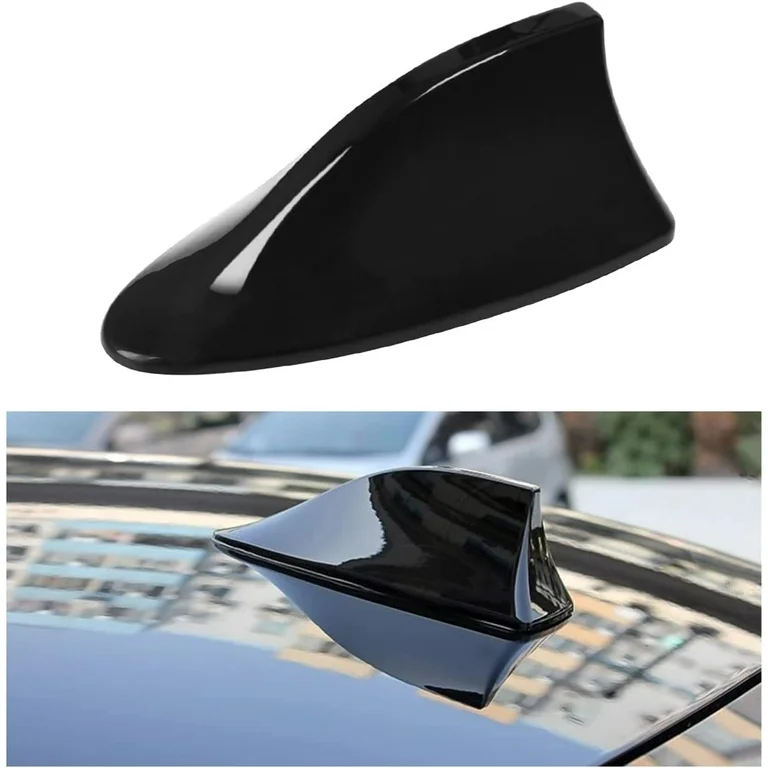

1.Three-in-One Integrated Design:Integrates GPS, GSM, and FM/AM antennas into one unit with a streamlined shark fin design for simple and aesthetically pleasing installation, suitable for various vehicles.
2.High-Sensitivity GPS Reception:GPS center frequency 1575.42MHz, built-in low-noise amplifier (LNA), gain up to 28±2dB, supporting high-precision positioning and stable navigation.
3.Strong Environmental Adaptability:Operating temperature range -40℃ to +85℃, IP65-IP66 protection rating, dustproof and waterproof, suitable for harsh climates and complex road conditions.
4.Dual-Band GSM Communication Support:Supports 824-960MHz and 1710-1990MHz dual-band, V.S.W.R ≤ 2.0, ensuring stable and smooth vehicle communication signals.
5.FM/AM Radio Reception Compatibility:FM band 76-108MHz, AM band 520-1629KHz, maximum gain 20dBi, improving radio quality, suitable for long-distance driving entertainment.
Application Scenarios
●GPS positioning and communication systems for commercial fleet management (logistics, freight, public transportation)
●Navigation and dispatch system upgrades for taxis and ride-hailing vehicles
●External antenna retrofitting for off-road vehicles, pickup trucks, and SUVs
●Multi-functional communication equipment for special vehicles (ambulances, police cars, engineering vehicles)
●Signal enhancement for in-vehicle entertainment systems (radio, multimedia)
FAQ
Q: What signals does this antenna support?
A: Supports GPS positioning, GSM communication (2G/3G/4G bands), and FM/AM radio reception.
Q: Is it waterproof? Is it suitable for outdoor use?
A: Yes, protection rating IP65-IP66, dustproof and waterproof, suitable for various outdoor vehicle environments.
Q: Which vehicle types is it suitable for?
A: Universal design, suitable for sedans, SUVs, trucks, commercial vehicles, and more.
Q: How accurate is the GPS positioning?
A: Uses a high-gain LNA, with sensitive signal reception and high positioning accuracy, suitable for navigation and tracking systems.
Q: Does the antenna include cables and connectors?
A: The standard configuration includes the antenna and connecting cable. Please consult customer service for specific connector types.
Q: Does it support 5G networks?
A: This product primarily supports GSM bands (including 2G/3G/4G) and does not support 5G communication.
Item | Specifications | ||
GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
Band Width | CF±5MHz | ||
Polarization | RHCP | ||
Gain | 2dBic(Zenith) | ||
V.S.W.R | <1.5 | ||
Impedance | 50Ω | ||
Axial Ratio | 3dB(max) | ||
LNA | Gain | 28±2dB | |
Noise Figure | <1.5 | ||
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
V.S.W.R | <2.0 | ||
Supply Voltage | 2.2~5V DC | ||
Current Consumption | 5~15mA | ||
GSM Antenna | Frequency Range | 824~960MHz/1710~1990MHz | |
V.S.W.R | <2.5 | ||
Polarization | Linear | ||
Gain | 2dBi | ||
Impedance | 50Ω | ||
FM/AM Antenna | Frequency Range | 520~1629KHz/76~108MHz | |
V.S.W.R | <2.5 | ||
Polarization | Linear | ||
Gain | 20/12dBi | ||
Impedance | 50Ω | ||
Supply Voltage | 12V DC | ||
Environmental | Operating Temperature | -40ºC~+85ºC | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP65~IP66 (exclude cable outlet) | ||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
Environmentally Friendly | ROHS Compliant | ||
Product Introduction
1.Three-in-One Integrated Design:Integrates GPS, GSM, and FM/AM antennas into one unit with a streamlined shark fin design for simple and aesthetically pleasing installation, suitable for various vehicles.
2.High-Sensitivity GPS Reception:GPS center frequency 1575.42MHz, built-in low-noise amplifier (LNA), gain up to 28±2dB, supporting high-precision positioning and stable navigation.
3.Strong Environmental Adaptability:Operating temperature range -40℃ to +85℃, IP65-IP66 protection rating, dustproof and waterproof, suitable for harsh climates and complex road conditions.
4.Dual-Band GSM Communication Support:Supports 824-960MHz and 1710-1990MHz dual-band, V.S.W.R ≤ 2.0, ensuring stable and smooth vehicle communication signals.
5.FM/AM Radio Reception Compatibility:FM band 76-108MHz, AM band 520-1629KHz, maximum gain 20dBi, improving radio quality, suitable for long-distance driving entertainment.
Application Scenarios
●GPS positioning and communication systems for commercial fleet management (logistics, freight, public transportation)
●Navigation and dispatch system upgrades for taxis and ride-hailing vehicles
●External antenna retrofitting for off-road vehicles, pickup trucks, and SUVs
●Multi-functional communication equipment for special vehicles (ambulances, police cars, engineering vehicles)
●Signal enhancement for in-vehicle entertainment systems (radio, multimedia)
FAQ
Q: What signals does this antenna support?
A: Supports GPS positioning, GSM communication (2G/3G/4G bands), and FM/AM radio reception.
Q: Is it waterproof? Is it suitable for outdoor use?
A: Yes, protection rating IP65-IP66, dustproof and waterproof, suitable for various outdoor vehicle environments.
Q: Which vehicle types is it suitable for?
A: Universal design, suitable for sedans, SUVs, trucks, commercial vehicles, and more.
Q: How accurate is the GPS positioning?
A: Uses a high-gain LNA, with sensitive signal reception and high positioning accuracy, suitable for navigation and tracking systems.
Q: Does the antenna include cables and connectors?
A: The standard configuration includes the antenna and connecting cable. Please consult customer service for specific connector types.
Q: Does it support 5G networks?
A: This product primarily supports GSM bands (including 2G/3G/4G) and does not support 5G communication.
