GL0438
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) | 380-698 | 698-960 | 1710-2700 | 3300-4200 |
Polarization | Vertical | |||
Gain (dBi) | 2±1 | 3± 1.5 | 6.5± 1.5 | 5±1 |
Horizontal Power Beam Width (°) | 360 | |||
Vertical Power Beam Width (°) | 85 | 60 | 45 | 35 |
Impedance (Ω) | 50 | |||
VSWR | ≤2.2 | ≤2.0 | ||
Maximum Power (W) | 50 | |||
Mechanical specifications | ||||
Connector | N Female or Customized | |||
Lead Length (cm) | 20 or Customized | |||
Connector Position | Bottom | |||
Diameter / Height (mm) | (Φ320*175）±2 | |||
Packing Size (mm) | 273*273*274 | |||
Weight (kg) | 0.7±0.1 | |||
Radome Material | ABS | |||
Radome Color | White | |||
Operating Temperature (℃) | -40-+60 | |||
Application | Indoor | |||
Mounting | Ceiling Mount | |||

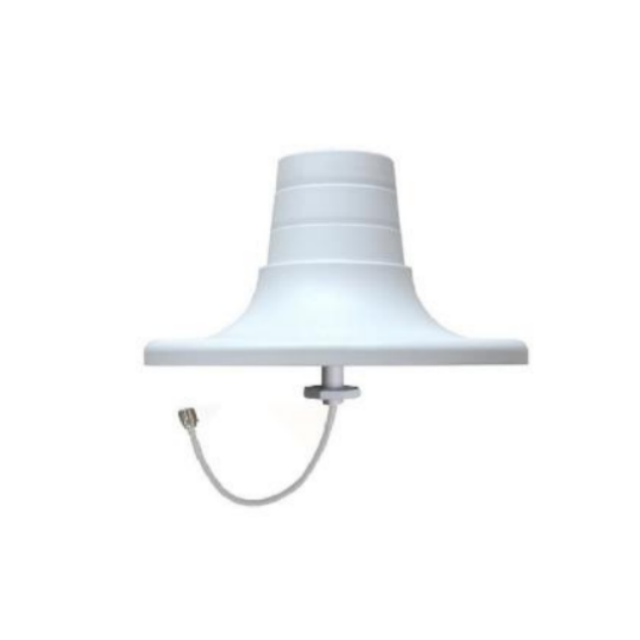

Product Introduction
Wideband Multi-System Coverage, Multi-Functional Network
The antenna covers a wide frequency band of 380-4200MHz, supporting multiple frequency bands including UHF, 4G, 5G, and Wi-Fi, suitable for multi-system combining and indoor signal distribution.
Omnidirectional Horizontal Coverage, Uniform Signal Distribution
360° omnidirectional radiation, with vertical beamwidth optimized according to frequency band, ensuring uniform signal coverage in indoor spaces without dead zones.
Aesthetically Pleasing White ABS Design, Blending into Indoor Environments
Using a white ABS material outer casing, the simple appearance is suitable for installation in indoor locations such as offices, shopping malls, and hotels, without affecting the decoration style.
Ceiling Mount, Convenient Installation
Standard ceiling mount installation method, pre-drilled Φ18-25mm mounting holes, equipped with a bottom N-type interface, simple installation steps, easy system integration.
Wide Temperature Range Operation, Stable and Reliable
Operating temperature -40℃~+60℃, weighing only 0.7kg, compact structure, suitable for various indoor climate environments.
Application scenarios
System (DAS) for Office Buildings, Shopping Malls, and Hotels
IoT Wireless Signal Coverage for Factories and Warehouses
Multi-band Wireless Communication System for Conference Centers and Exhibition Halls
Indoor Wireless Network Coverage for Campuses and Hospitals
Communication Signal Extension System for Underground Parking Lots and Subway Stations
Q:What frequency bands does this antenna support?
A:It supports 380-698MHz (UHF), 698-960MHz (4G), 1710-2700MHz (4G/5G), and 3300-4200MHz (5G/Wi-Fi) bands.
Q:Is this antenna suitable for outdoor use?
A:No, it is designed for indoor ceiling mount installation only. Outdoor use requires additional environmental protection.
Q:What is the gain of this antenna?
A:Gain varies by band: 2dBi (380-698MHz), 3dBi (698-960MHz), 6.5dBi (1710-2700MHz), and 5dBi (3300-4200MHz).
Q:Does it include mounting hardware?
A:Installation requires drilling a Φ18-25mm hole and securing with bolts. Hardware may be provided based on order configuration.
Q:Can the connector be customized?
A:Yes, the standard connector is N Female, but other connector types can be customized upon request.
Q:Is it compatible with 5G systems?
A:Yes, it supports 5G bands within 1710-2700MHz and 3300-4200MHz.
