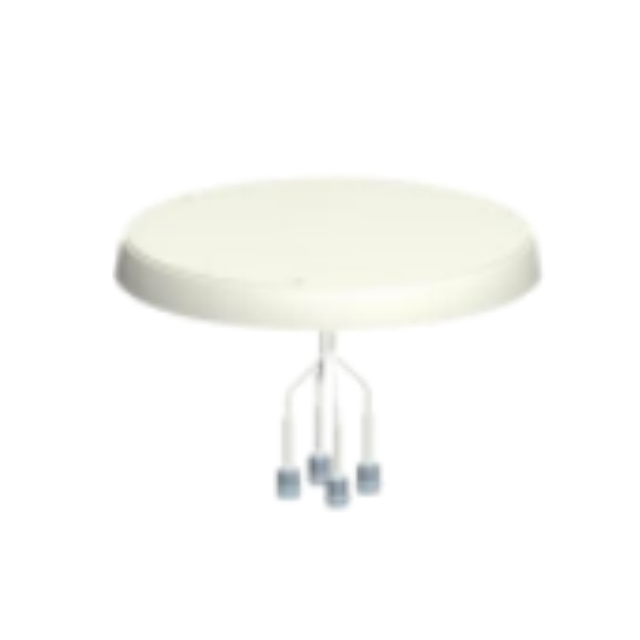

4G/5G & WiFi Wideband Ceiling Antenna

Product Introduction

1. Ultra-wideband coverage: Supports multiple key frequency bands including 617-960MHz, 1710-2700MHz, 3300-3800MHz, and 4900-6000MHz, perfectly compatible with existing 4G, 5G mobile communications, WiFi (such as WiFi 6E), and IoT signals, offering multi-functionality.

2. Superior signal quality and stability: Employs horizontal polarization with a low voltage standing wave ratio (VSWR) of ≤2.0, effectively reducing signal reflection loss and ensuring efficient and stable signal transmission, thus improving network quality.

3. Excellent passive intermodulation suppression: Possesses superior passive intermodulation (PIM) performance (@2×43dBm ≤-150dBc), significantly reducing interference caused by the coexistence of multiple frequency signals and ensuring communication clarity in high-capacity, multi-system coexistence scenarios.

4. Flexible Gain Configuration: Offers multiple gain options of 4/5/6/6 dBi, flexibly adaptable to specific coverage distances and signal environments. It can meet the needs of uniform coverage over wide areas or provide targeted enhancement in specific directions.

5. Professional and Aesthetically Pleasing, Easy Installation: Employs standard 2*4.3-10F RF connectors for reliable interface. The compact disc design (Φ350×45mm) is aesthetically pleasing and discreet, easily integrating into various indoor ceiling environments such as offices, shopping malls, and hotels for concealed deployment.

Application Scenarios

Corporate Offices and Conference Rooms

Shopping Malls, Supermarkets, and Retail Stores

Hotels and Hospitals

Smart Factories and Warehouses

Large Venues and Transportation Hubs

FAQ

Q: Does this antenna support the latest 5G frequency bands?

A: Yes. It fully supports the 3300-3800MHz and 4900-6000MHz frequency bands, covering most mainstream 5G NR Sub-6GHz frequency bands globally.

Q: Is professional installation required?

A: It is recommended that the installation be performed by an installer with basic RF knowledge. Installation involves drilling holes in the ceiling, fixing and connecting the RF cable; proper installation is crucial for performance.

Q: How many devices can it connect simultaneously?

A: The antenna itself is a passive device and there is no limit to the number of devices it can connect to. The actual number of devices it can serve depends on the capacity of the signal source (such as a cellular repeater or WiFi access point) it is connected to.

Q: Does the antenna require power?

A: No. This is a passive antenna and does not require a separate power supply; its operating energy comes from the signal emitted by the RF device it is connected to.

Q: Can it be used outdoors?

A: No. This model is an indoor ceiling-mounted antenna, and its materials and structure are not designed for harsh outdoor conditions such as waterproofing and UV protection. For outdoor use, a dedicated outdoor antenna must be selected.

Q: Does the package include a mounting bracket or cable?

A: Standard packaging typically only includes the antenna itself. Mounting brackets (such as slings) and RF coaxial cables need to be purchased separately depending on the on-site installation plan.
