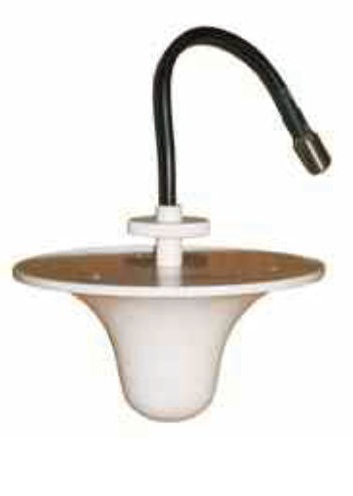

GL450XTS1 is the ceiling-mount choice with nut fixing.
GL450XTS1
GLOBAL
| Availability: | |
|---|---|
| Quantity: | |
| PDF Export | |
GL450XTS1 is the ceiling-mount choice with nut fixing. Compare it with GL450BKB only after deciding whether the installation needs a ceiling position or a wall-mounted antenna; their mounting methods are different.
For ceiling integration, check the circular body dimensions and clearance around the fixing point. GL450BKB has a different body shape and higher listed gain, but those differences do not establish that it will suit the same mounting location or coverage requirement.
| Model | GL450XTS1 |
|---|---|
| Frequency-MHz | 400-490 |
| Bandwidth-MHz | 16 |
| Gain-dBi | 2 |
| VSWR | ≤2.0 |
| Nominal Impedance-Ω | 50 |
| Polarization | Vertical |
| Maximum Power-W | 50 |
| Dimensions-cm | Φ16.5*9.4 |
| Weight-g | 250 |
| Connector | N female |
| Remarks | Fix with Nut |
