GLQ2471MOH
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| Frequency Band | 2400-2500 / 5150-5950 / 6000-7125 MHz |
| Polarization | Vertical |
| Peak Gain | 4 / 4 / 5 dBi |
| VSWR | ≤ 2.0 |
| Isolation | ≥ 13 / ≥ 20 / ≥ 20 dB |
| Impedance | 50 ohm |
| Max. Power | 50 W |
| MECHANICAL SPECIFICATIONS | |

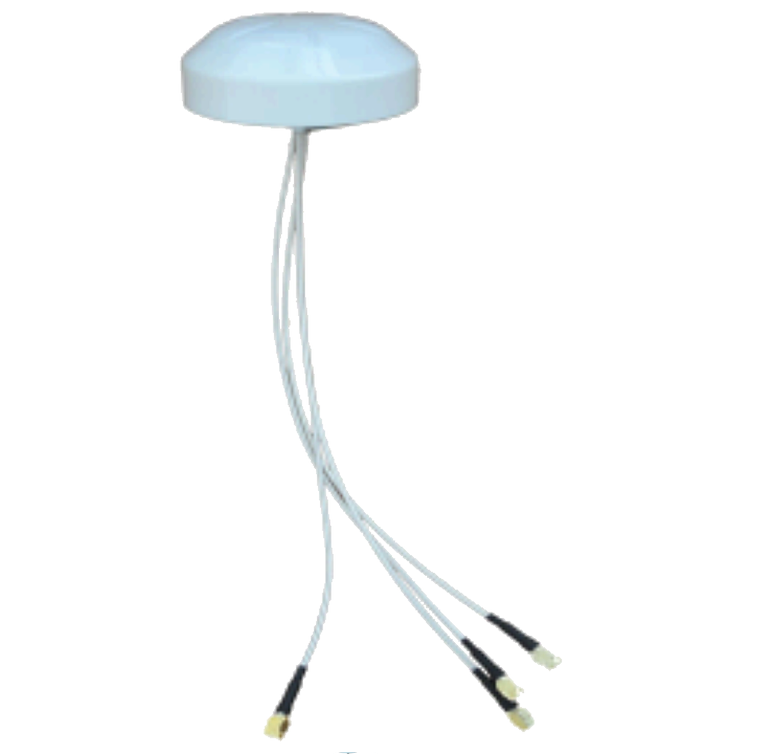

| Connector Type | 4 × RPSMA Male |
| Connector Position | Bottom |
| Exposed Cable | 1220 ± 10 mm (or user's customization) |
| Radome Material | PC |
| Radome Color | White |
| Dimensions | Dia. 90 × 40 mm |
| Weight | 180 g |
| Operating Temperature | -40°C to +85°C |
| Operating Humidity | 5-95% |
| Mounting Type | Fixed with nut |

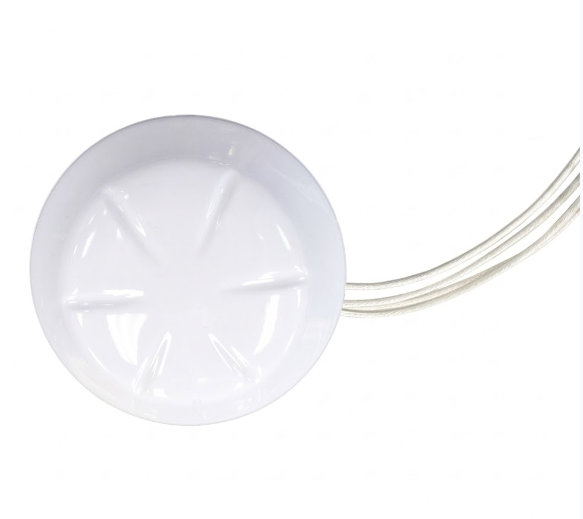

Product Introduction
Tri-band High-Speed CoverageSupports 2400-2500/5150-5950/6000-7125MHz, enabling seamless high-speed connectivity for 2.4G/5G/6G WLAN and IEEE 802.11a/b/g/n systems in a single device.
Optimized Gain for Diverse BandsDelivers 4dBi (2400-2500MHz), 4dBi (5150-5950MHz), and 5dBi (6000-7125MHz) to balance coverage and signal strength across frequency ranges.
Lightweight & Compact DesignWeighing only 180g with Ø90×40mm dimensions, it allows easy ceiling mounting with a fixing nut in crowded indoor spaces without structural modifications.
Durable PC ConstructionThe PC radome in clean white color ensures robust protection and long-term performance in modern commercial and enterprise environments.
Reliable Environmental ToleranceOperates from -40℃ to +85℃ with 5-95% humidity, suitable for demanding indoor conditions like offices, hospitals, or commercial centers with fluctuating environmental factors.

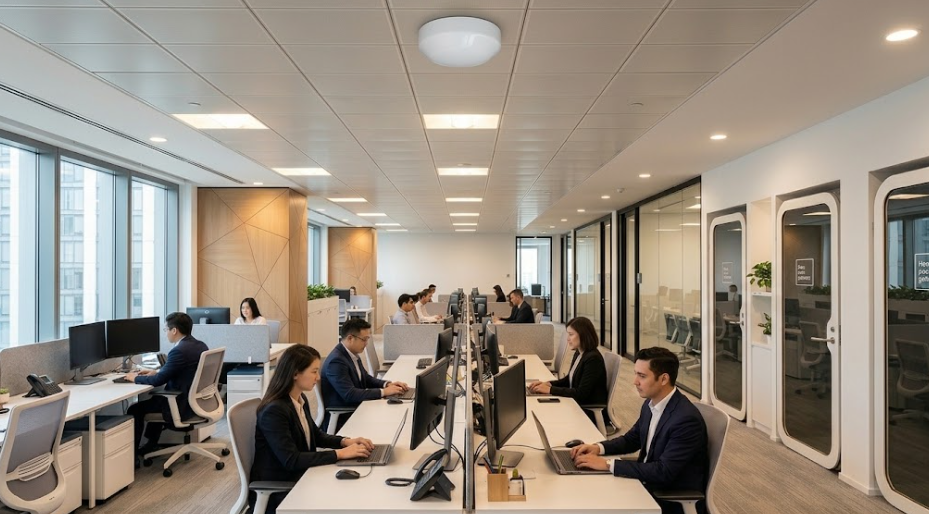

Application scenarios
Commercial offices – Provide high-density Wi-Fi 6E/7 coverage in conference rooms, open workspaces, and enterprise hubs via tri-band 4x4 MIMO.
Hospitality & Malls – Eliminate dead zones and handle high concurrent traffic on 2.4/5/6GHz bands in hotels and shopping centers.
Educational campuses – Ensure seamless multi-device Wi-Fi connectivity across lecture halls, university libraries, and auditoriums.
Healthcare facilities – Support medical equipment, patient monitors, and staff networks with reliable indoor omni-directional coverage.
Enterprise venues – Deliver low-latency Wi-Fi connections in convention halls and airports using compact ceiling-mounted antennas.
FAQ
Q: What frequencies does it support?
A: Three bands: 2400-2500MHz, 5150-5950MHz, and 6000-7125MHz (covers 2.4G/5G/6G Wi-Fi 6E/7).
Q: What's the coverage pattern?
A: Full 360° horizontal omni-directional radiation with vertical polarization.
Q: What connector type is used?
A: 4 x RPSMA male connectors (50Ω impedance).
Q: Is outdoor installation possible?
A: Designed for indoor ceiling-mount use only.
Q: Does it support 4x4 MIMO?
A: Yes, equipped with 4 separate cables and connectors for multi-channel MIMO transmission.
